Liebert® CW Chilled Water Cooling System 038-181kW
The innovative Liebert® CW system lets you rapidly deploy chilled water capacity, achieve higher efficiency and use less white space. It offers the industry's widest range of capacities, featuring the industry's most advanced controls and innovations, such as optimized coil design that maximizes capacity and efficiency even at high entering water temperatures.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Liebert® CW Chilled Water Cooling System 038-181kW
The innovative Liebert® CW system lets you rapidly deploy chilled water capacity, achieve higher efficiency and use less white space. It offers the industry's widest range of capacities, featuring the industry's most advanced controls and innovations, such as optimized coil design that maximizes capacity and efficiency even at high entering water temperatures.
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale
Specifications

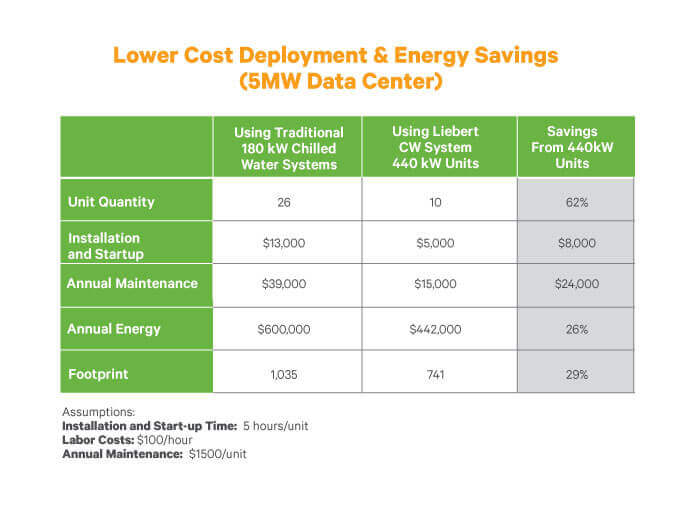

The Liebert® CW system combines the latest innovations in coil, valve and controls technologies for optimal protection and efficiency. Units in 440kW capacities significantly reduce the cost of deployment and maintenance and improve energy efficiency through an optimized chilled water coil design that can utilize higher entering water temperature (EWT). Multiple connection options provide greater flexibility during installation and commissioning. Right side and left side access for supply and return piping connections reduce the amount of floor space used, by enabling units to be situated closer together.
|
CW038, 38kW
|
||||||
|---|---|---|---|---|---|---|
| 112 [32.8] | 110 [32.2] | 6050 | 72 in | 50 in | 35 in | 840 lbs |
| See more product information | ||||||
|
CW041, 41kW
|
||||||
| 148 [43.4] | 132 [38.7] | 5950 | 72 in | 50 in | 35 in | 900 lbs |
| See more product information | ||||||
|
CW051, 51kW
|
||||||
| 169 [49.5] | 167 [48.9] | 9200 | 72 in | 74 in | 35 in | 1220 lbs |
| See more product information | ||||||
|
CW060, 60kW
|
||||||
| 231 [67.7] | 205 [60.1] | 9200 | 72 in | 74 in | 35 in | 1250 lbs |
| See more product information | ||||||
|
CW076, 76kW
|
||||||
| 241 [70.6] | 230 [67.4] | 12,400 | 72 in | 99 in | 35 in | 1440 lbs |
| See more product information | ||||||
|
CW084, 84kW
|
||||||
| 297 [87] | 265 [77.6] | 11900 | 72 in | 99 in | 35 in | 1540 lbs |
| See more product information | ||||||
|
CW114, 114kW
|
||||||
| 449 [132] | 393 [115] | 17,300 | 76 in | 122 in | 35 5/8 in | 1925 lbs |
| See more product information | ||||||
|
CW146, 146kW
|
||||||
| 523 [153] | 473 [139] | 21,000 | 94 in | 122 in | 42 in | 2520 lbs |
| See more product information | ||||||
|
CW181, 181kW
|
||||||
| 720 [211] | 605 [177] | 24,000 | 94 in | 122 in | 42 in | 2520 lbs |
| See more product information | ||||||
|
CW440, 440kW
|
||||||
| 1,765 [517] | 1,529 [448] | 60,000 | 145 in | 138 in | 60 in | 7024 lbs |
| See more product information |
Benefits
Features
- Liebert® CW 38 to181 kW System Design Catalog SL-18061
- Liebert® CW 38-181 kW Guide Specification (SL-18061GS)
- Liebert CW305, 375, 415 kW System Manual
- Liebert® CW305, 375, 415 kW Guide Specification SL-70375
- Liebert® CWA Thermal Wall Guide Specification (SL-70701)
- BACnet PICS Statement for iCOM SL-70399 - High Definition
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
