DA050, 50kW
Specifications
Technical Specifications
DA050, 50kW

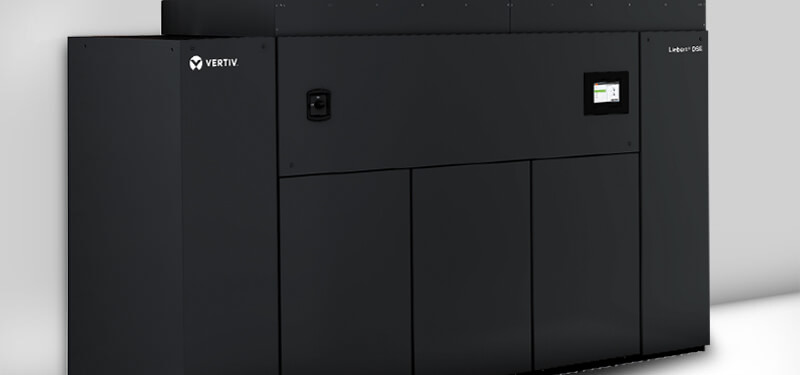

The Liebert® DSE Freecooling Solution provides high efficiency, water-free economization, maximum reliability, low maintenance and rapid scalability – all in highly flexible split-system configurations. Its pumped refrigerant economizer captures the most economization hours across the widest range of temperatures, compared to other similar systems. The Liebert® DSE packaged solution uses proven pumped refrigerant economizer technology that is deployed in more than 6,000 to 8,500 sites around the world. With a highly flexible design, the solution is available in configurations from 50kW to 265kW. 60kW, 400kW and 500kW capacities. Highly Flexible. The system provides split-system refrigerant economization with more than two dozens configurations for airflow, form factor and capacity. It can be deployed in perimeter, gallery and full-face discharge applications for raised floor and non-raised floor data centers. No Outside Air. The system’s pumped refrigerant technology separates outside air from data center air to eliminate cross-contamination or humidity transfer. Finely Tuned Controls. The system’s industry-leading Liebert® iCOM™ controls capture every available economization hour, with smooth, automated transitions. Advanced protection routines keep the system operating safely within thresholds. Automatic, multi-unit teamwork modes harmonize thermal management across the data center. Optimization routines reduce energy usage by up to 50% over previous versions. Onboard protocols make integration with building management systems easy. Easy Servicing. The Liebert® DSE has fewer moving parts than other economizer systems, reducing the likelihood of component downtime and maintenance. All components can be serviced from the back of the unit, allowing for more flexible installation options.
Air-cooled free cooling system with water-free economization, a rapidly deployable configuration and advanced Liebert iCOM thermal controls to optimize each unit and harmonize the operation of multiple units for temperature and airflow. Highly scalable and modular design accommodates changing IT loads and is ideal for upgrading outdated or inefficient cooling systems.
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship- Product Specifications
- TOTAL NOMINAL CAPACITY kBtuh[kW]
- 166 [49]
- NET SENSIBLE CAPACITY kBtuh [kW]*
- 166 [49]
- Nominal AIRFLOW [CFM]
- 7000
- Total Capacity
- 166 [49]
- Airflow Direction
- Downflow
- Heat Rejection Medium
- Air
- Capacity Modulation
- Variable Speed EC Fans
- Controls & Monitoring
- Liebert® iCOM™ Unit Control
- Physical Characteristics
- Weight
- 1590 lb
- Weight
- 721 kg
- Height
- 76 in
- Height
- 1930 mm
- Width
- 77 in
- Width
- 1956 mm
- Depth
- 35 in
- Depth
- 889 mm
- Liebert® DSE 50-165 kW 60 User Manual (SL-18933)
- Liebert® DSE 50-165 kW 14-47 Tons System Design Manual
- Liebert® DSE 250-265 kW Thermal Management System Installer User Guide SL-18945
- Liebert® iCOM™ Installer/User Guide (SL-31075)
- Liebert® MCV 60Hz High Density Microchannel Condenser Installer-User Guide
- Liebert® EconoPhase 14 to 72 Ton (50 to 250 kW) 50 and 60 Hz Installer User Guide
- Free Cooling Economizer Tool
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
