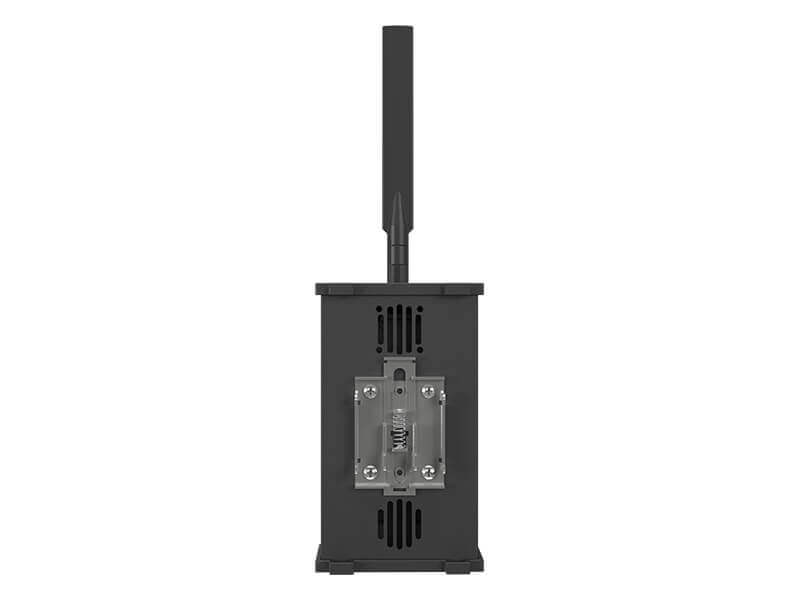

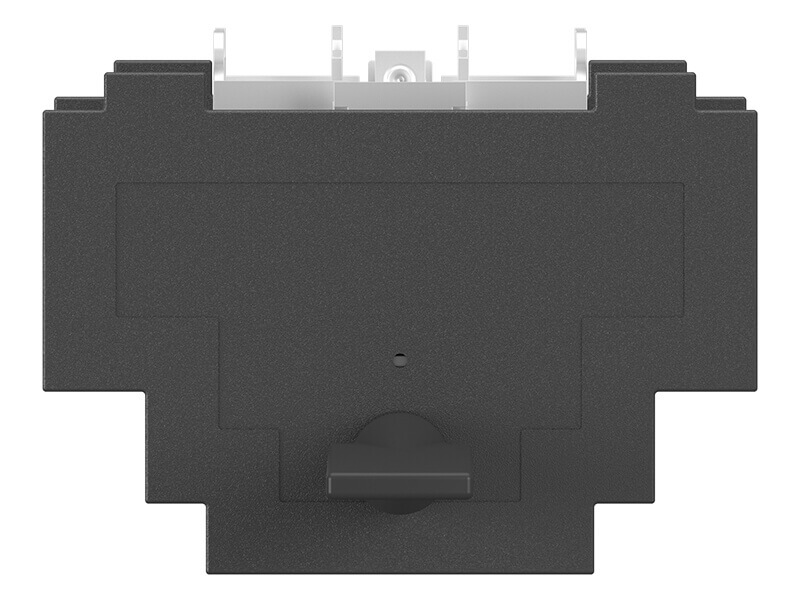

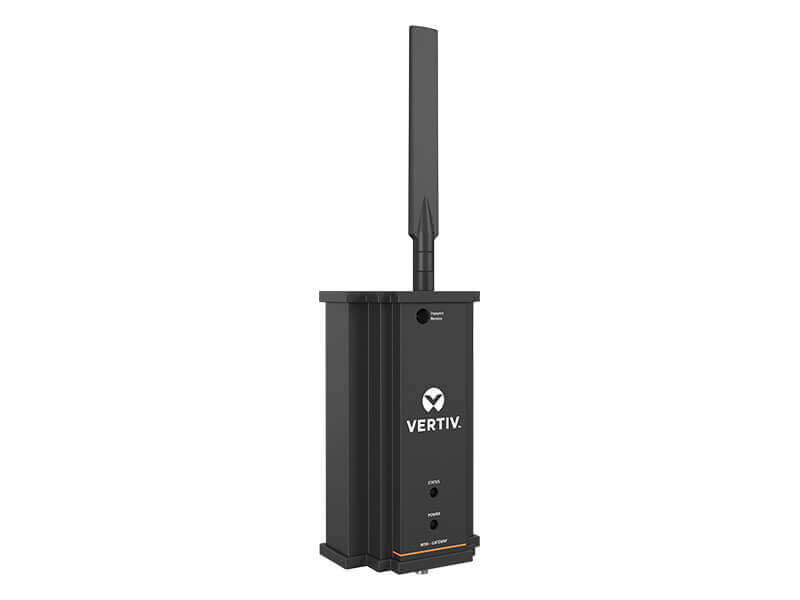

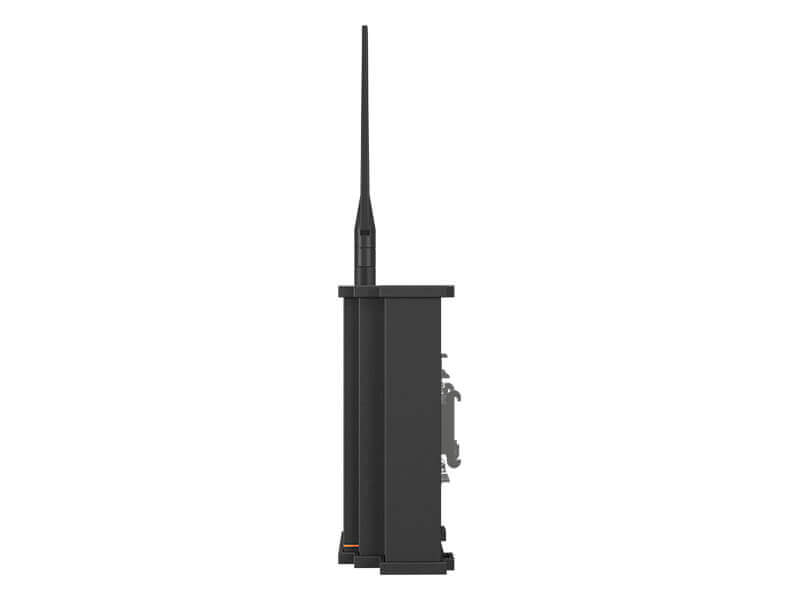

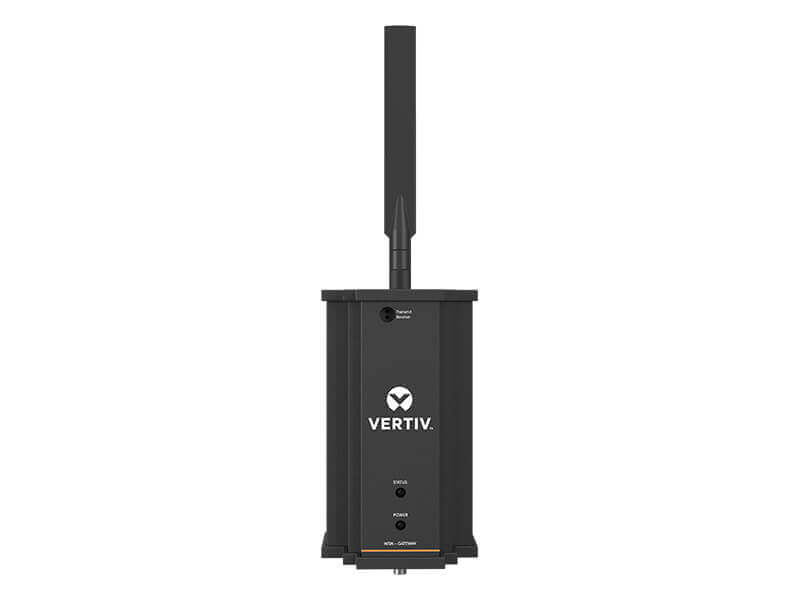

Vertiv™ WSN Gateway
Vertiv™ Wireless Sensor Network (WSN) provides an easily deployed platform for improved environmental visibility. Providing secure coverage for larger areas reduces deployment cost and network complexity. With best in class security, the Vertiv™ WSN uses proprietary data packet validation, layered encryption and user approval requirements to ensure your data stays protected. Integration with upstream Vertiv systems provides unmatched versatility and management through a single user interface. Available for order in early Q1 2020.
- Banking, Financial and Insurance
- Broadcast and Entertainment
- Data Center/Colocation/Hosting
- Construction and Engineering
- Education
- Government
- Healthcare
- Manufacturing
- Retail and Wholesale
- Telecom
- Transportation
Benefits
Features
Specifications
- Technical Specifications
- Product Line
- Vertiv™ WSN
- Mounting
- 35mm Din Rail / Flat Surface
- User Interface
- Web UI
- Power Input
- 12VDC (2.1mm ID x 5.5mm OD Locking Barrel Plug)
- Ports
- Dual 10/100 base-TX RJ45 CAT5/6 Ethernet
- Operating Environment
- [Indoor] 0°C -> 60°C, non-condensing
- Web User Interface
- Yes
- SNMP
- Yes
- Notifications
- Refreshing data/notifications on Web UI
- Configuration Port
- via Web UI/Ethernet
- Environmental Sensors
- Receives Data from WSN-FLEX
- Direct Integration
- BMS via SNMP, iCOM-S via API
- Inputs
- via Ethernet / WSN-FLEX Sensors
- Networking
- Dual 10/100 base-TX RJ45 CAT5/6 Ethernet
- Height
- 14 in
- Height
- 356 mm
- Width
- 3.87 in
- Width
- 98.3 mm
- Depth
- 2.92 in
- Depth
- 74.2 mm
