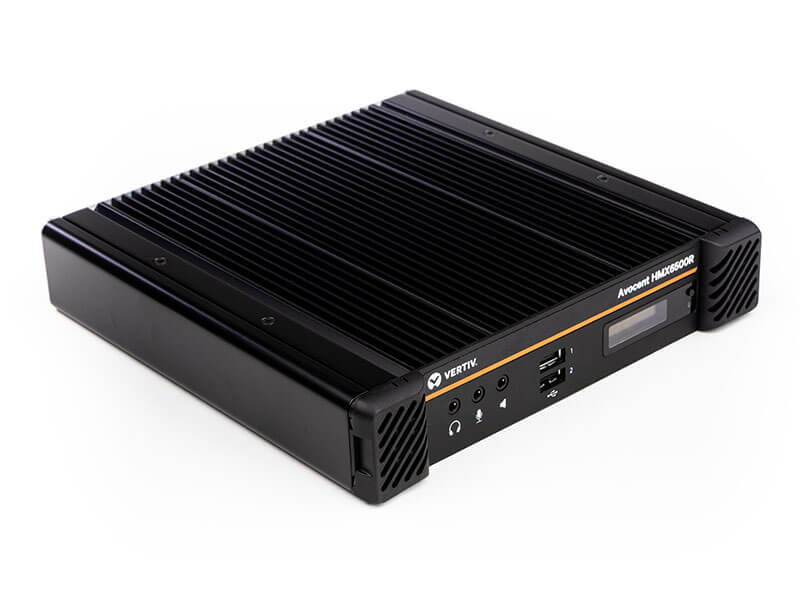

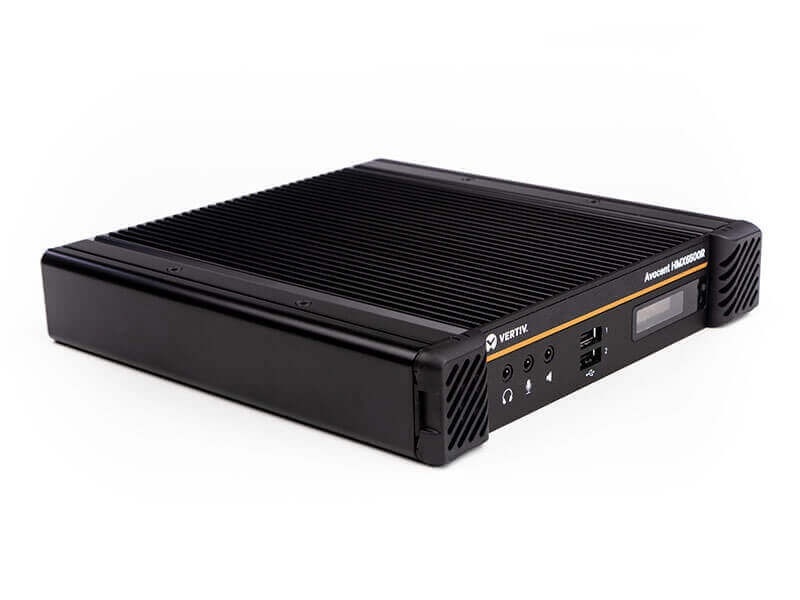

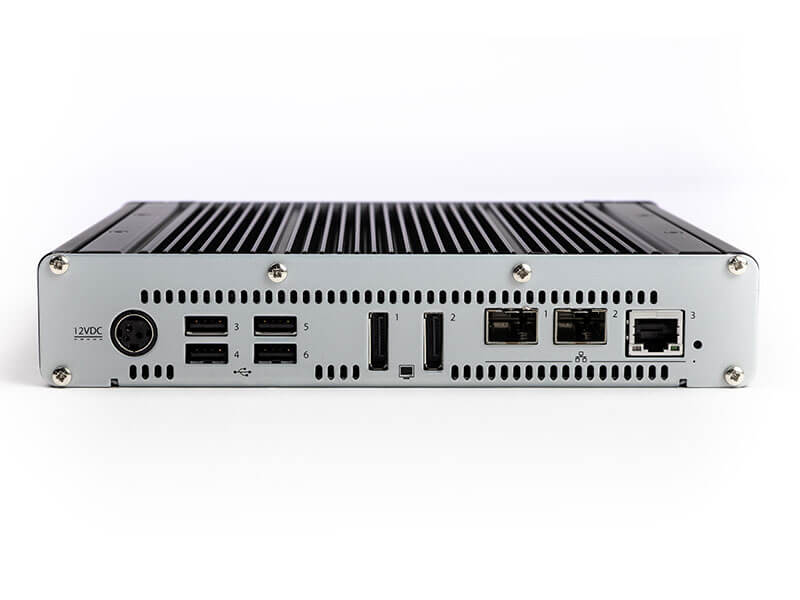

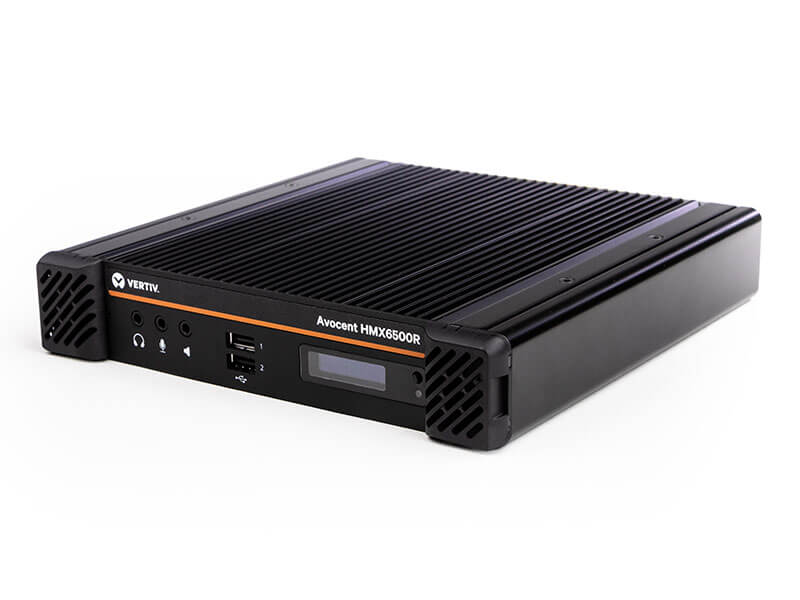

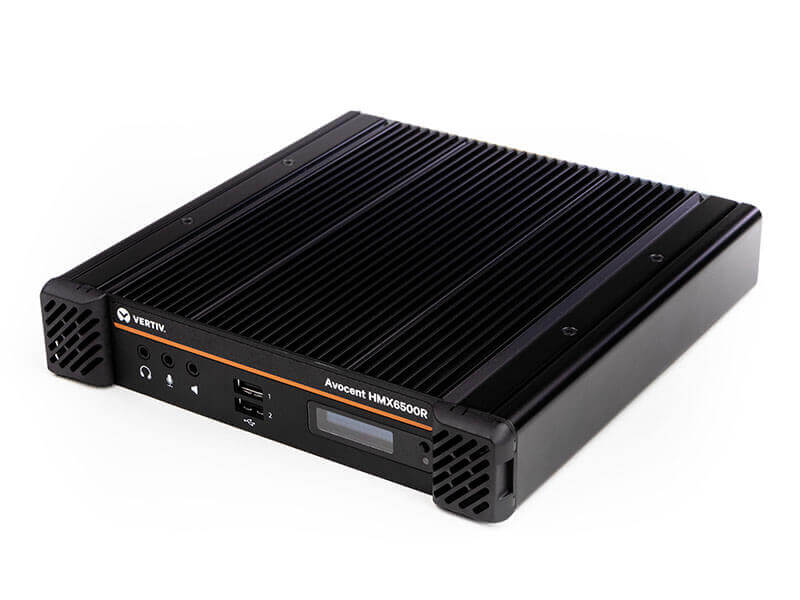

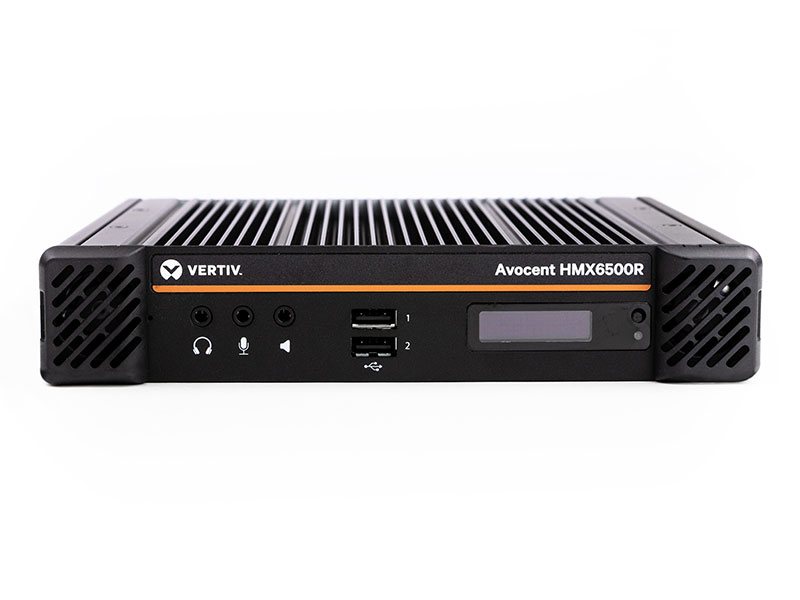

Vertiv™ Avocent® HMX 6500R | High Performance KVM Receiver (HMX6500R)
The Vertiv™ Avocent® HMX 6500R High Performance KVM System receiver delivers KVM and VM access without requiring additional hardware or compromise on KVM functionality. By incorporating Virtual Desktop Infrastructure (VDI) protocols into the receiver, the Avocent® HMX 6500R allows all operators to access all machines in a more efficient way. It is ideal for demanding applications such as broadcast, control rooms and collaborative environments.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Broadcast and Entertainment
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Military, Defense, Aerospace and Missile
Vertiv™ Avocent® HMX 6500R | High Performance KVM Receiver (HMX6500R)
The Vertiv™ Avocent® HMX 6500R High Performance KVM System receiver delivers KVM and VM access without requiring additional hardware or compromise on KVM functionality. By incorporating Virtual Desktop Infrastructure (VDI) protocols into the receiver, the Avocent® HMX 6500R allows all operators to access all machines in a more efficient way. It is ideal for demanding applications such as broadcast, control rooms and collaborative environments.
- Broadcast and Entertainment
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Military, Defense, Aerospace and Missile
Benefits
Features
Specifications
- Product Overview
- Type
- HPKVM
- Input Ports
- 5 X USB A
- Output Ports
- Speaker, Microphone
- Video Connection
- 2 X Display Port
- Video Resolution
- 2560 X 1600
- Graphic Mode
- Extension Distance
- 100 Meters
- Power Description
- Power Supply(s)
- External 12VDC, 5A
- Input Power (Maximum)
- 20W
- Interfaces/Ports
- Network Interface(s)
- 1x RJ45 ( 1 Gbe), 2x SFP+ cages (1 Gbe)
- USB ports
- 4 ports of USB 2.0 with USB True Emulation
- Operational Conditions
- Operating Temperature
- 0 to 40°C / 32 to 104°C
- Humidity
- 10-90% non-condensing
- Storage Temperature
- 0 to 60°C / 32 to 140°C
- Physical Characteristics
- Weight
- 4 lbs
- Weight
- 1.8 kgs
- Height
- 8.3 in
- Height
- 210 mm
- Width
- 8.5 in
- Width
- 215 mm
- Depth
- 1.6 in
- Depth
- 40 mm
- Miscellaneous
- Authentication Supported
- Requires Manager
- Agency Approvals
- CE and FCC
- Vertiv™ Avocent® HMX High Performance KVM Extender System Installer/User Guide
- Vertiv™ Avocent® HMX6500 High Performance KVM Receiver QIG
- Vertiv™ Avocent® HMX 8000/6500 Extender System and HMX Advanced Manager Rack Mount Guide
- Vertiv™ Avocent® HMX 5000, 6000 and 8000 Series High Performance KVM Extenders Network Recommendations Technical Note
- Vertiv™ Avocent® HMX 6500 High Performance KVM Receiver Configuring Access to a Virtual Machine Technical Note
