Product Model

Vertiv™ VR Rack Accessories - Rack Components

Requirements can change over time in a data center, and not every rack layout is an ideal fit for every application. Vertiv offers a host of rack component accessories to compliment any Vertiv™ VR Rack deployment, including pass-through side panels, networking roof panels, rack bases, rail conversion kits, and top and bottom panels, and many more. Customize your rack to provide the best layout to fit your needs. See table below for models.

Get Brochure Get Manual
Login to Save for Later
Warranty: The Vertiv™ VR Rack shall be warranted against defects in materials and workmanship for three (3) years from date of shipment. An additional two (2) years may be obtained by registering your product at https://www.vertivco.com/en-us/support/register-your-product/product-registration/.

Benefits

The Vertiv™ VR Rack delivers a premium rack solution whenever and wherever IT systems are deployed.
Quick shipment meets demand for rapid deployment
Supports all rack-based equipment and delivers 2.5 inches of additional useable depth
Full complement of accessories including cable management, airflow management, shelves, handles and support brackets
Tool-less design enables easy equipment installation, adjustments and service
Save time and money by pre-integrating Vertiv™ Geist™ rPDUs with the Vertiv VR Rack. Contact your local sales representative to get started

Features

Available in 8 standard sizes
Full depth adjustability of the 19” rails
Doors that have 77% perforation and can be hinged on either side
Two dual purpose full height depth adjustable PDU / cable management brackets mounted in the zero U space with tool-less button mounting of rack
42U frame height that allows for the rack to pass through standard doors on casters
Simple external baying, allows for metric baying or on 24” center
Split side panels with single locking slam latch allows for simple removal / installation

Vertiv™ VR Racks are complemented by a comprehensive lineup of rack accessories to provide a customized solution to any deployment. Increase your efficiency with airflow and cable management accessories, eliminating tangled messes that restrict airflow and limit hot-air recirculation with the use of blanking panels or roof fan kits. Shelves and mounting options allow for more IT equipment to be installed and help maintain a well-organized rack. Upgraded security handles and solid metal doors add another layer of protection from unauthorized access, and even allowing you to integrate door sensors and access attempts into your IT management system. Vertiv’s rack component accessories allows users to customize the rack to their exact requirements, including pass-through side and top panels, depth extensions, rail conversion kits, and more. Whatever your rack needs, Vertiv’s VR Rack Accessories can provide a solution.

Vertiv™ VR Rack Accessories - Rack Components
Product Overview
Type (Rack or Containment)
Misc. Rack Components

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

Find Your Area Contact

Products Support Contacts

Showing contacts for Ohio, 43215, USA Change
Vertiv (Liebert Services)
+1 800 543 2378
610 Executive Campus Drive Westerville Ohio 43082 USA
Product areas of focus: Uninterruptible Power Supplies (UPS), Power Distribution, Thermal Management, Integrated Solutions, Racks and Containment

Frequently Asked Questions

Q
What are the standard rack sizes and dimensions?
A
The Vertiv™ VR rack is available in 42U and 48U heights, widths of 600mm and 800mm, and depths of 1100mm and 1200mm. Additional sizes can be made available. Please consult your Vertiv sales representative.
Q
Are different locks available?
A
The doors and side panels cannot be keyed differently, however combination lock handles are available for the front and rear doors.
Q
Can the Vertiv™ VR rack be bayed (clustered) with the side panels on?
A
Yes
Q
What are the color options?
A
The standard color is black, however different rack colors can be made available. Please consult your Vertiv sales representative.
Q
How fast can I get racks shipped?
A
The Vertiv™ VR Rack is readily available through our channel distribution and resale partners, and Vertiv supports the channel with extensive regional inventories.

Rack Components

Models Accessory Type U Height Height (mm) Width (mm) Depth (mm) Weight (kg)

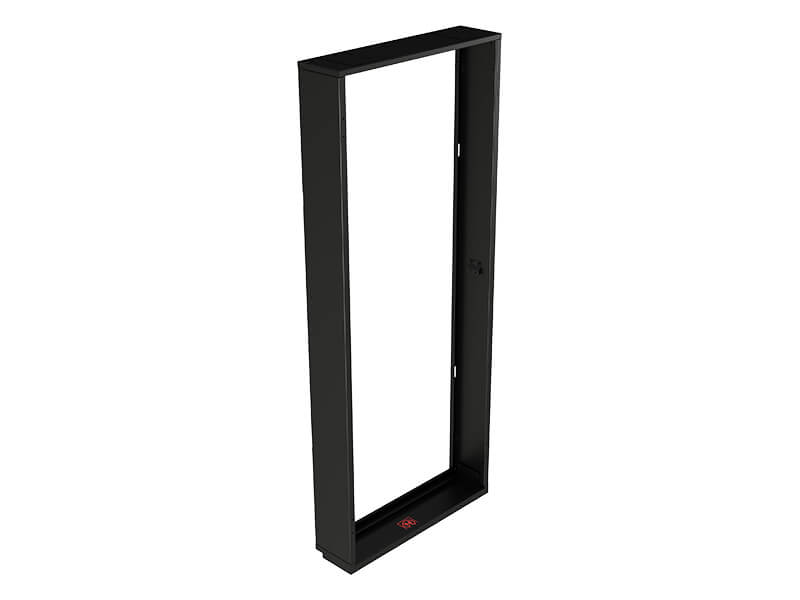

VRA3005 Depth Extension 42U x 600 x 200

Depth Extensions

42U

237

1945

393

20.37

VRA3006 Depth Extension 42U x 800 x 200

Depth Extensions

42U

237

1945

393

21.95

VRA3007 Depth Extension 48U x 600 x 200

Depth Extensions

48U

237

2212

293

22.92

VRA3008 Depth Extension 48U x 800 x 200

Depth Extensions

48U

237

2212

293

24.5

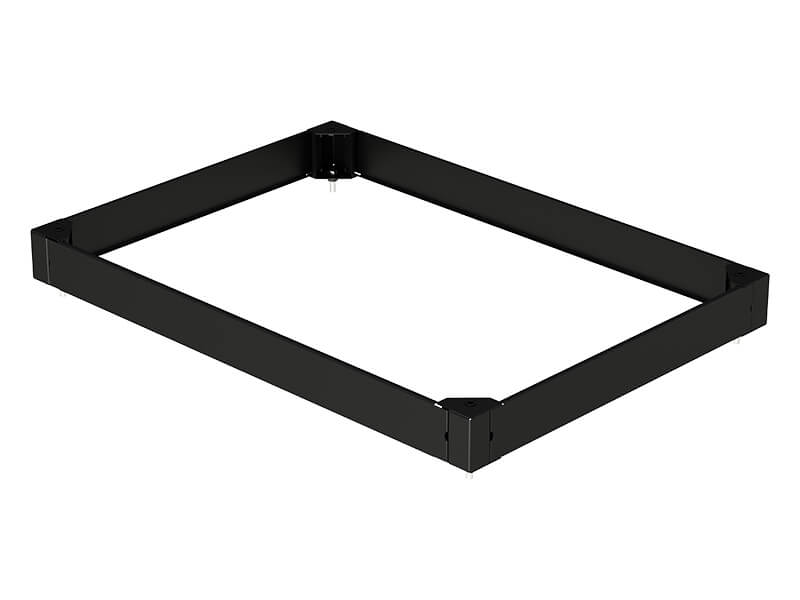

VRA3009 VR 100x600x1100 Rack Base

Rack Base

210

1206

178

6.2

VRA3010 VR 100x800x1100 Rack Base

Rack Base

210

1206

178

7.66

VRA3011 VR 100x600x1200 Rack Base

Rack Base

210

1206

178

6.44

VRA3012 VR 100x800x1200 Rack Base

Rack Base

210

1206

178

7.9

VRA6009 VR 42Ux1100 Split Side Panels

Split Side Panels

42U

97

1075

875

8

VRA6010 VR 42Ux1200 Split Side Panels

Split Side Panels

42U

97

1175

875

8.5

VRA6011 VR 48Ux1100 Split Side Panels

Split Side Panels

48U

97

1075

1010

9

VRA6012 VR 48Ux1200 Split Side Panels

Split Side Panels

48U

97

1075

1010

9.7

VRA6013 VR 42Ux600 19" Rails

Server Rails

42U

145

1950

165

4.8

VRA6014 VR 42Ux800 19" Rails

Server Rails

42U

235

1950

225

9

VRA6015 VR 48Ux600 19" Rails

Server Rails

48U

145

2235

165

5.4

VRA6016 VR 48Ux800 19" Rails

Server Rails

48U

235

2235

225

10

VRA6017 VR 600x1100 Top Panel

Top Panels

95

1015

665

6.1

VRA6018 VR 800x1100 Top Panel

Top Panels

95

1015

865

8

VRA6019 VR 600x1200 Top Panel

Top Panels

95

1015

665

6.8

VRA6020 VR 800x1200 Top Panel

Top Panels

95

1015

865

9

VRA6021 VR Top Panel Grommets

Top Panels

100

165

50

0.3

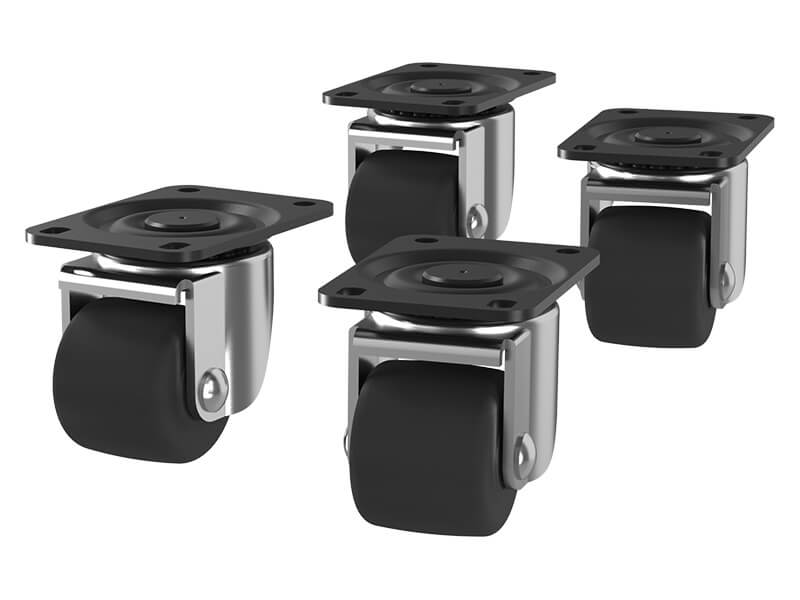

VRA6024 VR Caster Kit

Casters

190

260

120

0.8

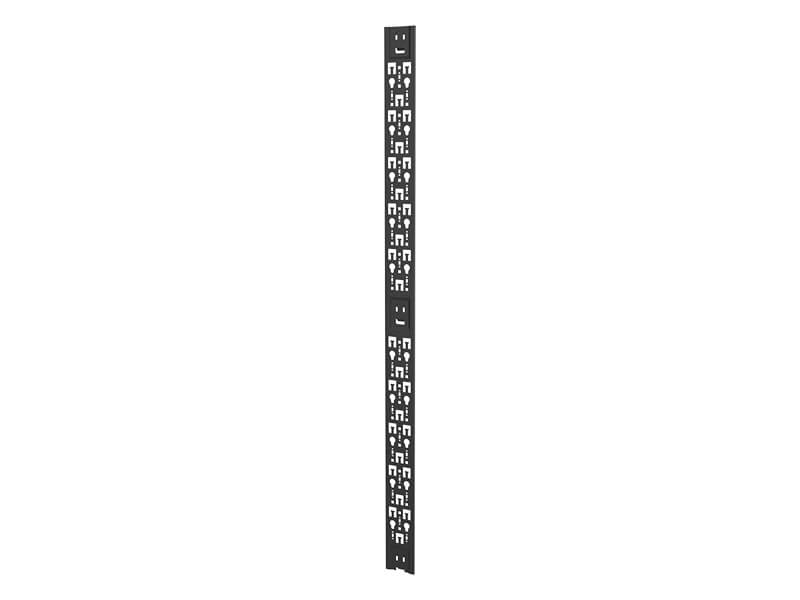

VRA6025 VR 42U 4" PDU/Cable Mgt Brackets

PDU/Cable Management Brackets

42U

100

1950

190

2.8

VRA6026 VR 48U 4" PDU/Cbl Mgt Bracket

PDU/Cable Management Brackets

48U

100

2220

190

3.1

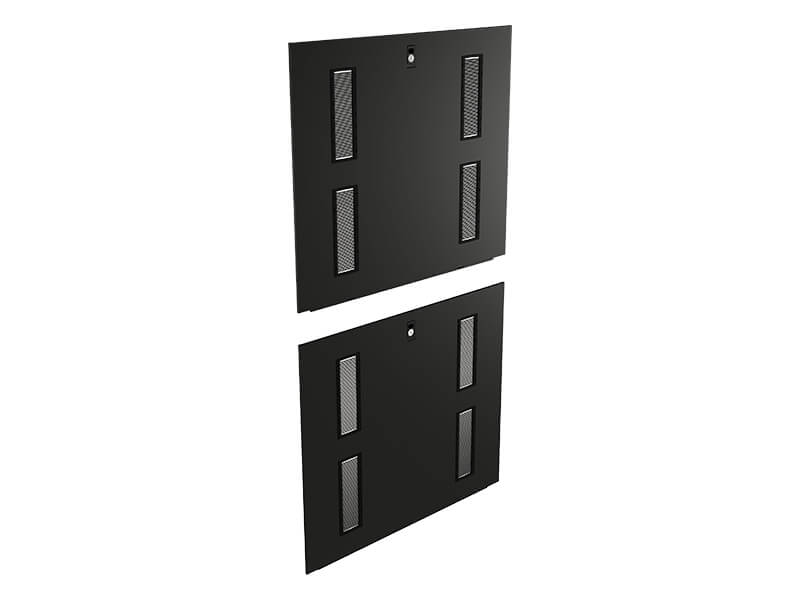

VRA6029 Pass-Through Side Panels 45U x 1100

Pass-Through Side Panels

45U

169

1154

954

16

VRA6030 Pass-Through Side Panels 45U x 1200

Pass-Through Side Panels

45U

169

1254

954

16

VRA6031 Pass-Through Side Panels 48U x 1100

Pass-Through Side Panels

48U

169

1154

1088

16.5

VRA6032 Pass-Through Side Panels 48U x 1200

Pass-Through Side Panels

48U

169

1254

1088

18.5

VRA6033 Networking Roof Panel 600 x 1100

Networking Roof Panels

92

1078

705

8.5

VRA6034 Networking Roof Panel 600 x 1200

Networking Roof Panels

92

1178

705

8.8

VRA6035 Networking Roof Panel 800 x 1100

Networking Roof Panels

92

1078

905

12

VRA6036 Networking Roof Panel 800 x 1200

Networking Roof Panels

92

1178

905

12.4

VRA6037 Rack Bottom Panel 600 x 1100

Bottom Panels

114

1064

402

7.3

VRA6038 Rack Bottom Panel 600 x 1200

Bottom Panels

114

1064

502

8.2

VRA6039 Rack Bottom Panel 800 x 1100

Bottom Panels

114

1164

402

9.6

VRA6040 Rack Bottom Panel 800 x 1200

Bottom Panels

114

1164

502

10.6

VRA6042 Copper BUS Bar 42U

Copper Bus Bar

42U

60

1941

75

3

VRA6043 Copper BUS Bar 48U

Copper Bus Bar

48U

60

2176

75

3.2

VRA6044 Rail Conversion Kit 42U , 21" EIA Mounting Rails 800mm

Rail Conversion Kits

42U

394

1984

302

35

VRA6045 Rail Conversion Kit 45U , 21" EaIA Mounting Rails 800mm

Rail Conversion Kits

45U

394

2114

302

39

VRA6046 Rail Conversion Kit 45U , 23" EIA Mounting Rails 800mm

Rail Conversion Kits

45U

394

2114

302

40.1

VRA6047 Rail Conversion Kit 42U , 23" EIA Mounting Rails 800mm

Rail Conversion Kits

42U

394

1984

302

36.47

VRA6048 Rail Conversion Kit 48U , 21" EIA Mounting Rails 800mm

Rail Conversion Kits

48U

394

2254

302

42.5

VRA6049 Rail Conversion Kit 48U , 23" EIA Mounting Rails 800mm

Rail Conversion Kits

48U

394

2254

302

43

VRA6054 Pass-Through Side Panels 42U x 1100

Pass-Through Side Panels

42U

169

1154

820

14

VRA6055 Pass-Through Side Panels 42U x 1200

Pass-Through Side Panels

42U

169

1254

820

17
