Vertiv™ VR Rack Accessories - Cable Management
Organized cable arrangement increases the lifetime of cables and makes it easier to work on them for replacements or maintenance. Make sure the cables in your Vertiv™ VR Rack are properly organized with cable management accessories like cable ladders, cable troughs, horizontal and vertical cable managers, and tool-less lobster claws, D-rings, and Velcro straps. See table below for models.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Vertiv™ VR Rack Accessories - Cable Management
Organized cable arrangement increases the lifetime of cables and makes it easier to work on them for replacements or maintenance. Make sure the cables in your Vertiv™ VR Rack are properly organized with cable management accessories like cable ladders, cable troughs, horizontal and vertical cable managers, and tool-less lobster claws, D-rings, and Velcro straps. See table below for models.
Warranty: The Vertiv™ VR Rack shall be warranted against defects in materials and workmanship for three (3) years from date of shipment. An additional two (2) years may be obtained by registering your product at https://www.vertivco.com/en-us/support/register-your-product/product-registration/.Benefits
Features
Specifications
Vertiv™ VR Racks are complemented by a comprehensive lineup of rack accessories to provide a customized solution to any deployment. Increase your efficiency with airflow and cable management accessories, eliminating tangled messes that restrict airflow and limit hot-air recirculation with the use of blanking panels or roof fan kits. Shelves and mounting options allow for more IT equipment to be installed and help maintain a well-organized rack. Upgraded security handles and solid metal doors add another layer of protection from unauthorized access, and even allowing you to integrate door sensors and access attempts into your IT management system. Vertiv’s rack component accessories allows users to customize the rack to their exact requirements, including pass-through side and top panels, depth extensions, rail conversion kits, and more. Whatever your rack needs, Vertiv’s VR Rack Accessories can provide a solution.
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Frequently Asked Questions
- Q
- What are the standard rack sizes and dimensions?
- A
- The Vertiv™ VR rack is available in 42U and 48U heights, widths of 600mm and 800mm, and depths of 1100mm and 1200mm. Additional sizes can be made available. Please consult your Vertiv sales representative.
- Q
- Are different locks available?
- A
- The doors and side panels cannot be keyed differently, however combination lock handles are available for the front and rear doors.
- Q
- Can the Vertiv™ VR rack be bayed (clustered) with the side panels on?
- A
- Yes
- Q
- What are the color options?
- A
- The standard color is black, however different rack colors can be made available. Please consult your Vertiv sales representative.
- Q
- How fast can I get racks shipped?
- A
- The Vertiv™ VR Rack is readily available through our channel distribution and resale partners, and Vertiv supports the channel with extensive regional inventories.
Related Products And Services
Standardize your deployments around the world and bring them online faster with the Vertiv™ VR rack. The Vertiv VR supports a wide variety of equipment including servers, storage, switches, routers, PDUs, UPSs, console port servers and KVM switches. The Vertiv VR is delivered ready for high density environments to serve your mission critical needs — even as they evolve and change. This rack gives you the flexibility you need with easy installation.
The Vertiv™ VR Rack is complemented by a comprehensive lineup of accessories, including airflow management, cable management, mounting and hardware, doors and security handles, and other rack components. Tool-less options allow for quick installation and re-configuration of the rack deployment.
Cable Management
| Models | Accessory Type | U Height | Height (mm) | Width (mm) | Depth (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
VRA1000 1U Horizontal Cable Organizer with Metal D Rings (Qty. 1) |
Horizontal Cable Management |
1U |
168 |
550 |
130 |
0.7 |
VRA1001 2U Horizontal Cable Organizer 2U with Metal D Rings (Qty. 1) |
Horizontal Cable Management |
2U |
168 |
550 |
130 |
1.1 |
VRA1002 Horizontal Cable Manager, 1U x 4" Deep (Qty. 1) |
Horizontal Cable Management |
1U |
180 |
550 |
140 |
0.7 |
VRA1003 2U x 4" Deep Horizontal Cable Manager (Qty. 1) |
Horizontal Cable Management |
2U |
180 |
550 |
140 |
1.1 |

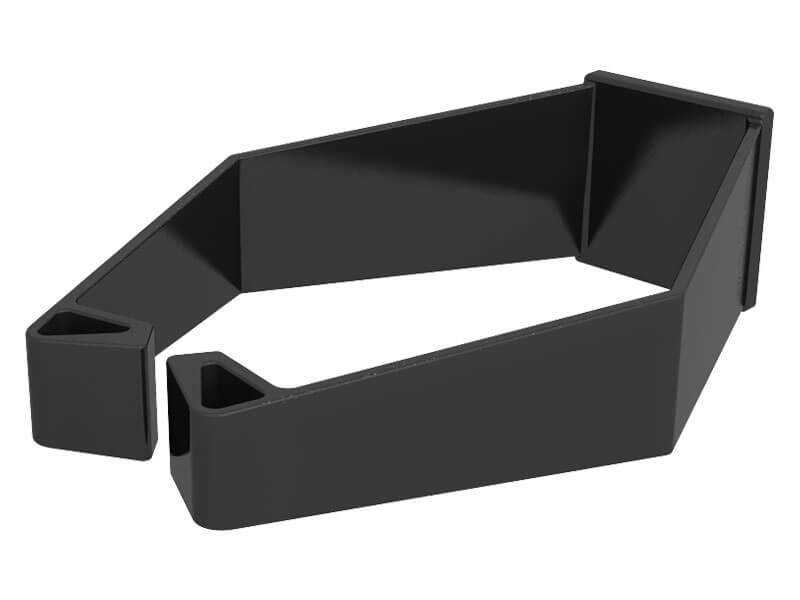

VRA1004 Tool-less Cable Management -Lobster Claw (Qty. 10) |
Tool-Less Cable Management |
|||||
VRA1005 Tool-less Cable Management - Velcro Strap (Qty. 10) |
Tool-Less Cable Management |
|||||
VRA1006 Tool -less Cable Management -Lobster Claw (Qty. 100) |
Tool-Less Cable Management |
|||||
VRA1007 Tool-less Cable Management - Velcro Strap (Qty. 100) |
Tool-Less Cable Management |
|||||
VRA1008 Tool-less D Rings Small (Qty. 10) |
Tool-Less Cable Management |
|||||
VRA1009 Tool-less D Rings Small (Qty. 100) |
Tool-Less Cable Management |
|||||
VRA1010 Tool-less D Rings Large (Qty. 10) |
Tool-Less Cable Management |
|||||
VRA1011 Tool-less D Rings Large (Qty. 100) |
Tool-Less Cable Management |
|||||
VRA1013 Horizontal Cable Organizer Side Channel 20-33" adjustment (Qty. 1) |
Horizontal Cable Management |
148 |
668 |
140 |
2.5 |
|

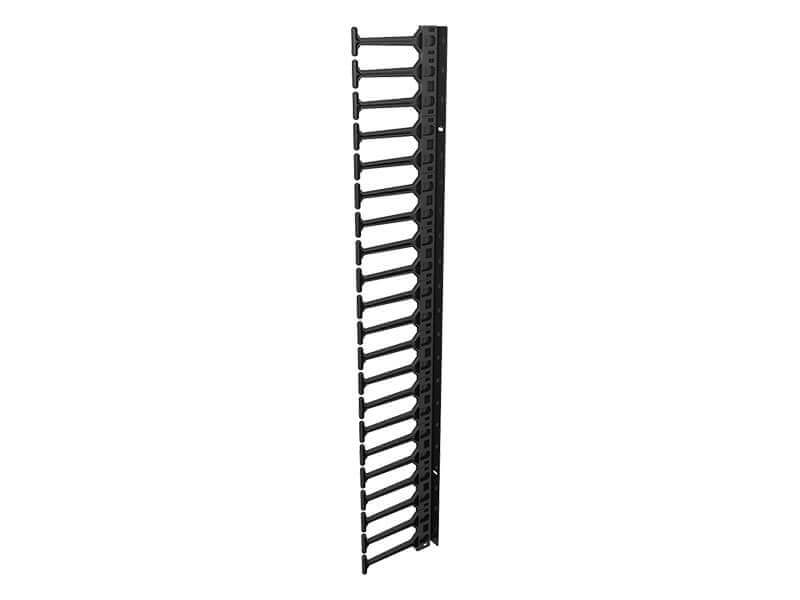

VRA1014 Vertical Cable Manager 600mm Wide 42U (Qty. 2) |
Vertical Cable Management |
42U |
190 |
87 |
1075 |
2.1 |
VRA1015 Vertical Cable Manager for 600mm Wide 48U (Qty. 2) |
Vertical Cable Management |
48U |
190 |
87 |
1075 |
2.9 |
VRA1016 Vertical Cable Manager for 800mm Wide 42U (Qty. 2) |
Vertical Cable Management |
42U |
250 |
1125 |
175 |
4.8 |
VRA1017 Vertical Cable Manager for 800mm Wide 48U (Qty. 2) |
Vertical Cable Management |
48U |
250 |
1125 |
175 |
5.5 |
VRA1018 Hinged Covers 800mm Wide 42U Vertical Cable Manager (Qty. 2) |
Vertical Cable Management |
42U |
185 |
1148 |
85 |
2.8 |
VRA1020 Hinged Covers 800mm Wide 48U Vertical Cable Manager (Qty. 2) |
Vertical Cable Management |
48U |
185 |
1148 |
85 |
2.4 |

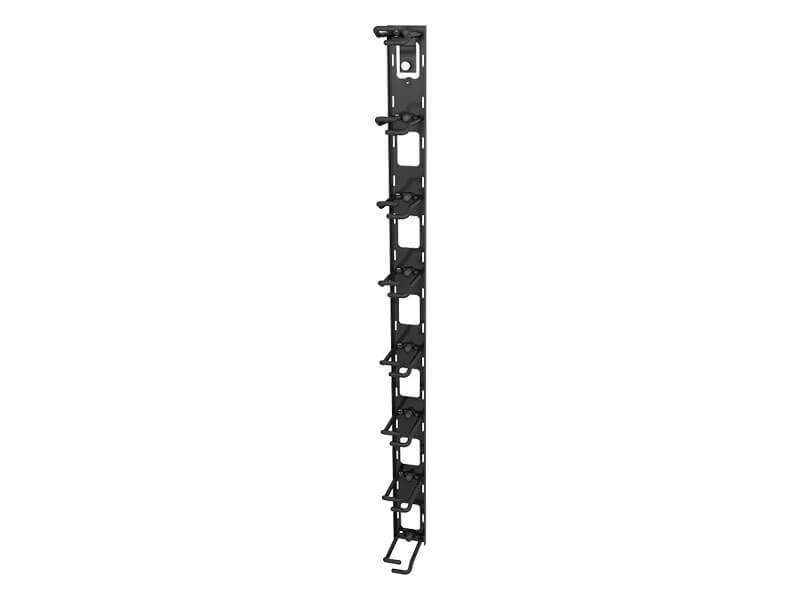

VRA1021 Vertical Cable Organizer, 8 Cable Rings, Zero U (Qty. 2) |
Vertical Cable Management |
175 |
850 |
95 |
3.2 |
|
VRA1022 2U x 6" Deep Horizontal Cable Manager (Qty. 1) |
Horizontal Cable Management |
2U |
225 |
550 |
135 |
1.3 |
VRA1023 1U x 6" Deep Horizontal Cable Manager (Qty. 1) |
Horizontal Cable Management |
1U |
225 |
550 |
135 |
0.8 |
VRA1024 Horizontal Cable Organizer Side Channel 22-38" adjustment (Qty. 1) |
Horizontal Cable Management |
148 |
668 |
140 |
2.8 |
|
VRA1025 Cable Ladder Rack Kit 6" w/ Install Kit |
Cable Ladder |
210 |
1674 |
212 |
12.15 |
|

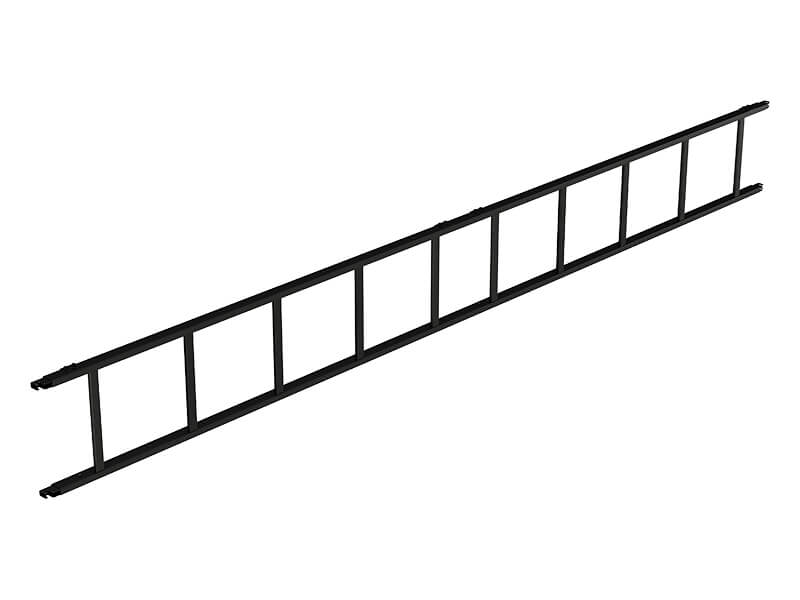

VRA1026 Cable Ladder Rack Kit 12" w/ Install Kit |
Cable Ladder |
379 |
1674 |
212 |
13.6 |
|
VRA1027 Cable Ladder Rack/Wall Management Kit |
Cable Ladder |
94 |
599 |
102 |
1.4 |
|
VRA1028 Cable Ladder Angle Adapter Kit |
Cable Ladder |
48 |
248 |
79 |
0.6 |
|
VRA1029 Cable Ladder Trough Front Adaptor Kit |
Cable Ladder |
64 |
404 |
112 |
1.4 |
|
VRA1030 Cable Ladder Trough End Adaptor Kit |
Cable Ladder |
84 |
514 |
92 |
1.5 |
|
VRA1031 45U Vertical Cable Management 800W |
Vertical Cable Management |
45U |
200 |
1118 |
222 |
5.5 |
VRA1033 45U Vertical Cable Management 600W |
Vertical Cable Management |
45U |
200 |
1118 |
222 |
2.9 |
VRA1034 Cable Ladder Suspension Kit |
Cable Ladder |
56 |
164 |
107 |
0.3 |
|
VRA1035 Cable Ladder Stacking Kit |
Cable Ladder |
184 |
394 |
137 |
1.9 |
|
VRA8501 VR Cable Trough, Cable Alignment Kit (Set of 2) |
Cable Trough |
|||||
VRA8502 VR Cable Trough, Connector Kit (Set of 2) |
Cable Trough |
|||||
VRA8503 VR Cable Trough, Cable Separation Kit (Set of 12) |
Cable Trough |
|||||
VRA8504 VR Cable Trough Grounding Wire, 750mm (Set of 10) |
Cable Trough |
|||||
VRA8505 VR Cable Trough, 300mm Height Extension |
Cable Trough |
|||||
VRA8506 VR Cable Trough, 600mm Height Extension |
Cable Trough |
|||||
VRA8561 VR Cable Trough, 600mm |
Cable Trough |
|||||
VRA8567 VR Cable Trough, End Caps (Set of 2) |
Cable Trough |
|||||
VRA8571 VR Cable Trough, 800mm |
Cable Trough |
|||||
VRA8573 VR Cable Trough Cover, 300mm |
Cable Trough |
|||||
VRA8574 VR Cable Trough Cover, 600mm |
Cable Trough |
|||||
VRA8575 VR Cable Trough Cover, 800mm |
Cable Trough |
|||||
VRA8581 VR Cable Trough, 300mm |
Cable Trough |
