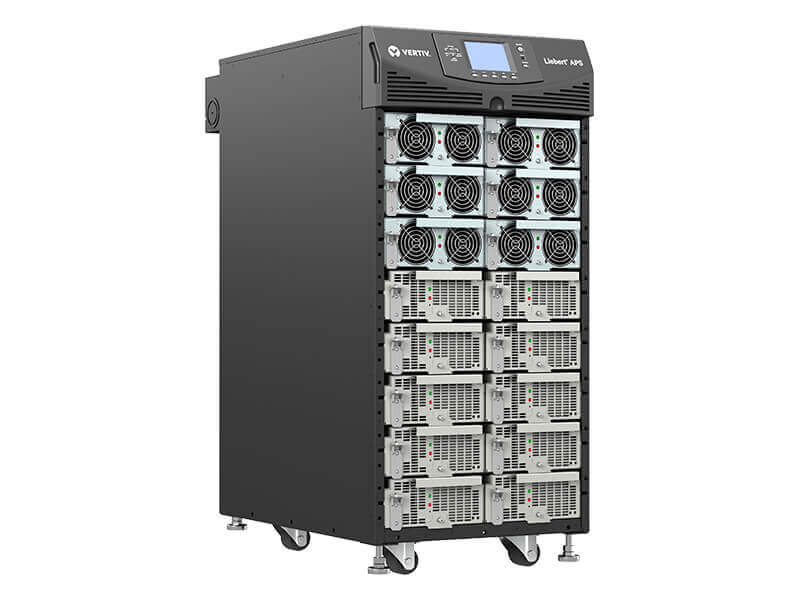

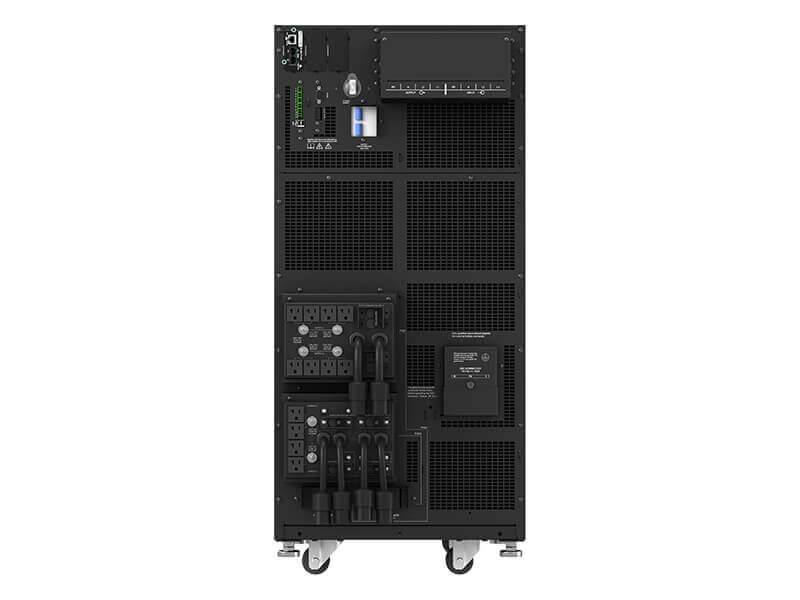

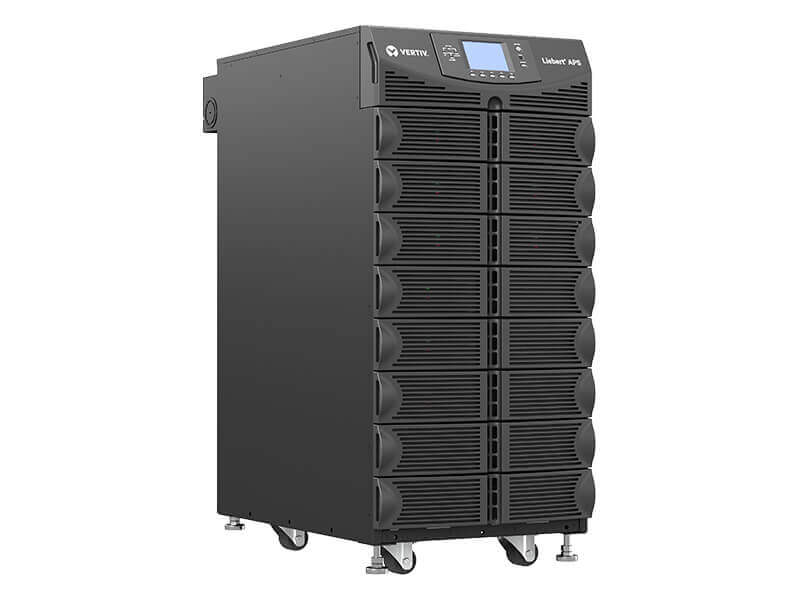

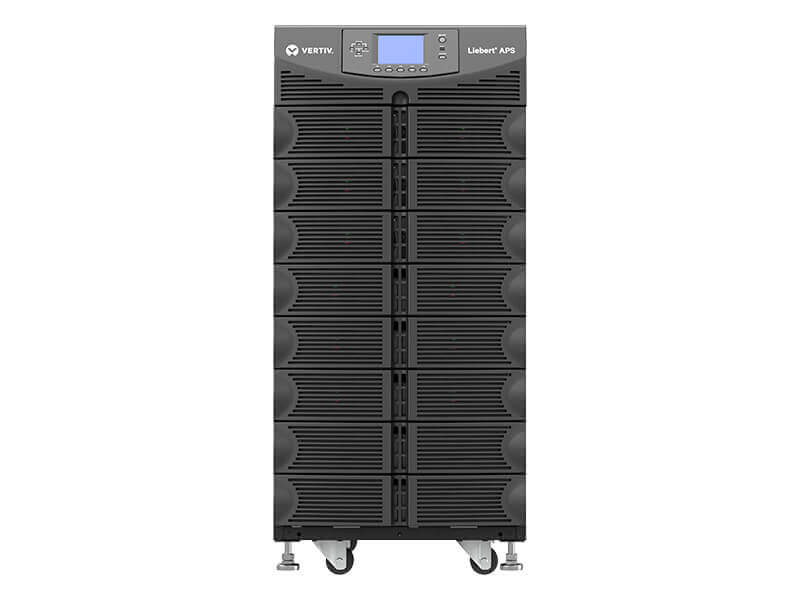

Liebert® APS AS6 Series
The AS6 Series Liebert® APS is a modular online double-conversion UPS, scalable from 5 to 20kVA N+1 and provides mission-critical availability and reduces costs while maintaining future flexibility. Pay as you grow design of the Liebert APS simplifies the capacity planning process and provides budge flexibility. The AS6 Series Liebert APS is a dual-inverter transformer-free design to provide both 208 and 120VAC output to your critical IT.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Government
- Healthcare
- Retail and Wholesale
- Transportation
Liebert® APS AS6 Series
The AS6 Series Liebert® APS is a modular online double-conversion UPS, scalable from 5 to 20kVA N+1 and provides mission-critical availability and reduces costs while maintaining future flexibility. Pay as you grow design of the Liebert APS simplifies the capacity planning process and provides budge flexibility. The AS6 Series Liebert APS is a dual-inverter transformer-free design to provide both 208 and 120VAC output to your critical IT.
- Government
- Healthcare
- Retail and Wholesale
- Transportation
Benefits
Features
Specifications
The Liebert APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Liebert APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.
- Product Overview
- Power Rating
- Up to 20kVA/18kW N+1
- Input Voltage
- 208/120VAC
- Output Voltage
- 208/120VAC
- Efficiency
- Up to 92%
- Wiring
- 4-Wire (L-L-N-G)
- Operational Conditions
- Operating Temperature
- 0°C - 40°C (32°F - 104°F)
- Liebert® APS UPS Brochure SL-55000
- ENERGY STAR® Qualified UPS Products Data Sheet
- Data Center Infrastructure Solutions-Channel Products Catalog
- Vertiv™ E-Rate Eligible Brochure
- Vertiv™ E-Rate Eligible Data Sheet
- Vertiv™ Capabilities in a Network Closet
- Liebert APS Selection Guide Flowchart SL-55026
- Liebert APS Site Planning Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
AS5 & AS6 Series APS Performance Tables
|
Model |
Power Capacity |
Scalable To |
Input |
Output |
Full-Load |
Half-Load |
|
AS5A0NCUGNNXLKB |
5kVA / 4.5kW |
15 / 13.5 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
15 |
|
AS5A0NCVGNNXLKB |
5kVA / 4.5kW |
15 / 13.5 |
Hardwire (L-L-N-G) |
Hardwire |
15 |
40 |
|
AS5B0NCVGNNXLKB |
10kVA / 9.0kW |
15 / 13.5 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
15 |
|
AS6A0NCVGNNXLKB |
5kVA / 4.5kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
15 |
40 |
|
AS6B0NCVGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
16 |
|
AS6B0NCWGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
10 |
27 |
|
AS6B0NCYGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
21 |
53 |
|
AS6C0NCWGNNXLKB |
15kVA / 13.5kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
16 |
|
AS6C0NCJGNNXLKB |
15kVA / 13.5kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
16 |
41 |
|
AS6D0NCXGNNXLKB |
20kVA / 18.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
16 |
|
AS6D0NCJGNNXLKB |
20kVA / 18.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
10 |
27 |
Notes
- N+1 Power Redundancy can be achieved on any standard configuration by purchasing an extra power module.
- Models 10kVA and up can be configured to N+1 redundancy with a 5kVA/4.5kW De-rate to unit capacity.
- Scalable Runtime solutions are available, for details please contact your local Vertiv™ office and design your own solution with an expert on the product
