Product Family

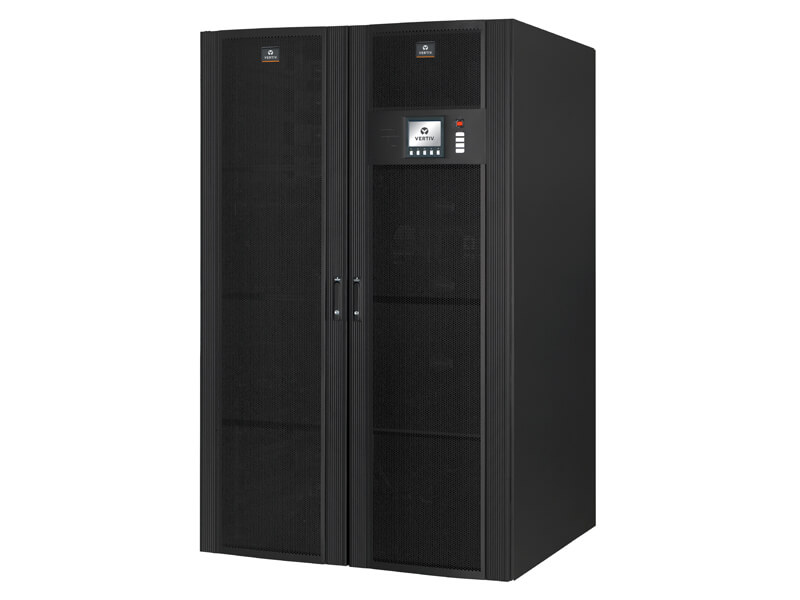

Liebert APM

The Compact Row-Based UPS With FlexPower Technology™

Get Brochure
Best Suited For:
  • Data CenterColocationHosting
  • Education
  • FireAlarmSecurity
  • Government
  • Healthcare
  • Manufacturing
  • Telecom
  • Transportation
Tools & Selectors
Select, compare, or configure UPS systems and models
UPS Selector
Interactive product selector for single-phase UPS
UPS/Battery Upgrade Services
Explore options to maintain Liebert® GXT & Liebert® PSI UPS
Liebert® EXL S1 360 Interactive Experience
Visualize and explore key features and benefits of the Liebert® EXL S1 UPS

Liebert APM is the next generation UPS solution based on the scalable power platforms developed by Vertiv. What differentiates Liebert APM from other power protection solutions is its Adaptive Power Manager features. Unique in its class, the Liebert APM provides complete high efficient power protection and distribution in a single cabinet, eliminating the complexity of two-stage power distribution. Its intelligent and adaptive capability to manage power within the data center row makes it a suitable solution for business expansion in the future .It features FlexPower Technology™, which incorporates distributed intelligence and scalable power in a common assembly. It is suitable for small and medium businesses with the attitude to grow fast: thanks to its architecture that enables the UPS system capacity to start as low as 30kW which can grow with the business up to 600kW.

Benefits

Remarkable double conversion efficiency up to 97.5% with Unity output power factor (1.0)

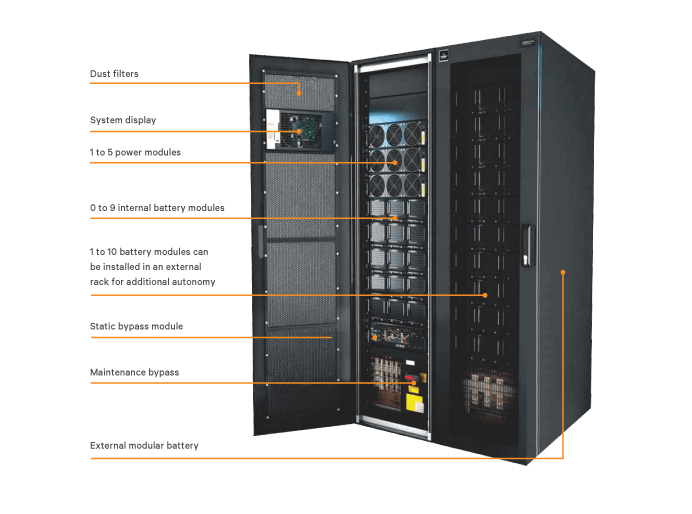

High-density yet compact, modular, and scalable design with hot-swappable modules - power, bypass, and communication
Lithium-ion battery compatible with flexible battery blocks
Large, Intuitive 9-inch full-color touchscreen HMI with real-time waveform monitoring and predictive maintenance notifications
Seamlessly operates up to 50 °C with auto-derating above 40 °C
Intelligent paralleling capability
Optimized MTTR < 0.5h
Supports self-capacity test

Features

Ultra high efficiency up to 96% in double conversion mode, flat efficiency curve Each 30kVA module deliver 30kW, unity PF Wide voltage and frequency range Maximum power density in its range allow it to accommade 150kVA in <0.66m2 space Distributed controller: Each module has its own DSP Intelligent Battery Management Input PF >.99, THDi <3% Hot swappable power modules Optional branch monitoring system with distribution version Standard built in LBS function and smart parallel Capable to handle 0.9 leading loads Power scalability Multiple standard models    - Built-in distribution version    - Built-in modular battery version Flexible battery combination adopts 12Vx30/32/34/36/38/40 cell design Modular design architecture Full front access Service and fault diagnosis powered by black box function Equipped with Advanced Communication Options User friendly multi-lingual intuitive large LCD HMI
