DA050, 50kW

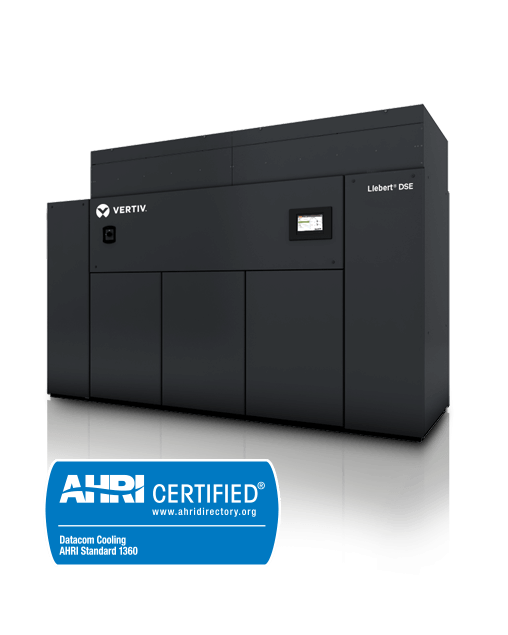

The Liebert DSE is the industry's first pumped refrigerant economization system designed specifically for data centers. Ideal for companies seeking sustainable solutions, it provides up to 50% higher efficiency than traditional systems - and it uses no water. Its advanced controls automate economization to get the most free-cooling in any environment.
Guadar este produto no seu dashboard
Você pode guardar este produto no seu dashboard para ve-lo depois. Você pode elimina-lo com facilidade do seu dashboard quando você já no quer ve-lo lá.
Please login or create an account to save this for later
- Bancos, Setor Financeiro e Seguradoras
- Transmissão e Entretenimento
- Data Center/ Colocation / Hosting
- Governo
- Militar, Defesa, Espaço Aéreo e Mísseis
- Telecomunicação
DA050, 50kW
The Liebert DSE is the industry's first pumped refrigerant economization system designed specifically for data centers. Ideal for companies seeking sustainable solutions, it provides up to 50% higher efficiency than traditional systems - and it uses no water. Its advanced controls automate economization to get the most free-cooling in any environment.
- Bancos, Setor Financeiro e Seguradoras
- Transmissão e Entretenimento
- Data Center/ Colocation / Hosting
- Governo
- Militar, Defesa, Espaço Aéreo e Mísseis
- Telecomunicação
Vantagens
Recursos
Especificações

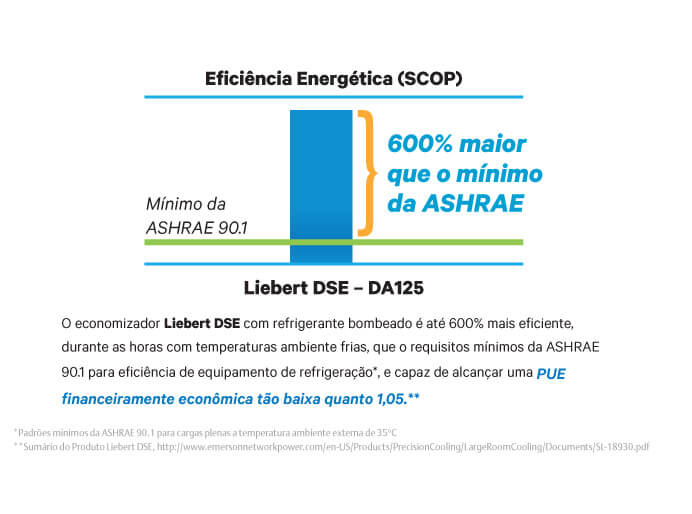

The Liebert DSE Freecooling Solution provides high efficiency, water-free economization, maximum reliability, low maintenance and rapid scalability – all in highly flexible split-system configurations. Its pumped refrigerant economizer captures the most economization hours across the widest range of temperatures, compared to other similar systems.

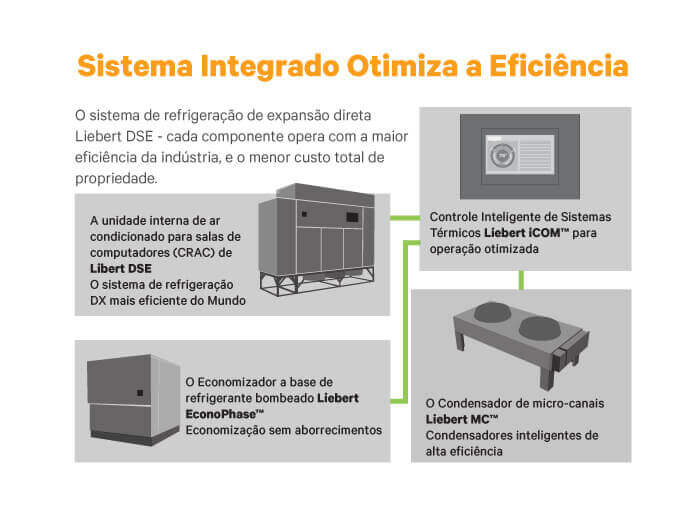

Air-cooled free-cooling system with water-free economization, a rapidly deployable configuration and advanced Liebert iCOM thermal controls to optimize each unit and harmonize the operation of multiple units for temperature and airflow. Highly scalable and modular design accommodates changing IT loads and is ideal for upgrading outdated or inefficient cooling systems.
- Product Specifications
- Total Nominal Capacity kBtuh [kW]
- 166 [49]
- Net Sensible Capacity kBtuh [kW]
- 166 [49]
- Nominal Airflow [CFM]
- 7000
- Total Capacity
- 166 [49]
- Airflow Direction
- Downflow
- Heat Rejection Medium
- Air
- Capacity Modulation
- Variable Speed EC Fans
- Controls and Monitoring
- Variable Speed EC Fans
- Physical Characteristics
- Peso (lbs / kgs)
- 1590 lb
- Peso (lbs / kgs)
- 721 kg
- Altura (pol/mm)
- 76 in
- Altura (pol/mm)
- 1930 mm
- Largura (pol/mm)
- 77 in
- Largura (pol/mm)
- 1956 mm
- Profundidade (pol/mm)
- 35 in
- Profundidade (pol/mm)
- 889 mm
- Liebert® DSE 50-165 kW 60 User Manual (SL-18933)
- Liebert® DSE 50-165 kW 14-47 Tons System Design Manual
- Liebert® DSE 250-265 kW Thermal Management System Installer User Guide SL-18945
- Liebert® iCOM™ Installer/User Guide (SL-31075)
- Liebert® MCV 60Hz High Density Microchannel Condenser Installer-User Guide
- Liebert® EconoPhase 14 to 72 Ton (50 to 250 kW) 50 and 60 Hz Installer User Guide
- Free Cooling Economizer Tool
*Para ver downloads específicos de modelos, é necessário acessar a página de produto específica do modelo, selecionando o nome do modelo na tabela de especificações acima.
Contatos
Suporte em
Alterar localização
Produtos/serviços relacionados
The Liebert Econophase pumped refrigerant economizer works with the Liebert DSE cooling unit and Liebert MC Outdoor Condenser to significantly improve data center efficiency - without bringing in outside air and without using water.
The Liebert MC Microchannel Condenser is an outdoor air-cooled condenser that provides higher efficiency, while using less refrigerant. Features such as variable speed fans, advanced controls and a microchannel coil make this system uniquely innovative.
