Liebert STS2-PDU Static Transfer Switch-Power Distribution Unit
Provides power distribution and automatic switching between two different AC power sources such as different UPS systems.
Sauvegardez ce produit dans votre tableau de bord
Vous venez de sauvegarder ce produit dans votre tableau de bord afin de le consulter ultérieurement. Vous pourrez ensuite facilement le supprimer quand vous n’en aurez plus besoin.
Veuillez vous connecter ou créer un compte pour sauvegarder ce contenu afin de le consulter ultérieurement
- Banking Financial and Insurance
- Data CenterColocationHosting
- Healthcare
- Education
- Retail and Wholesale
Liebert STS2-PDU Static Transfer Switch-Power Distribution Unit
Provides power distribution and automatic switching between two different AC power sources such as different UPS systems.
- Banking Financial and Insurance
- Data CenterColocationHosting
- Healthcare
- Education
- Retail and Wholesale
Spécifications

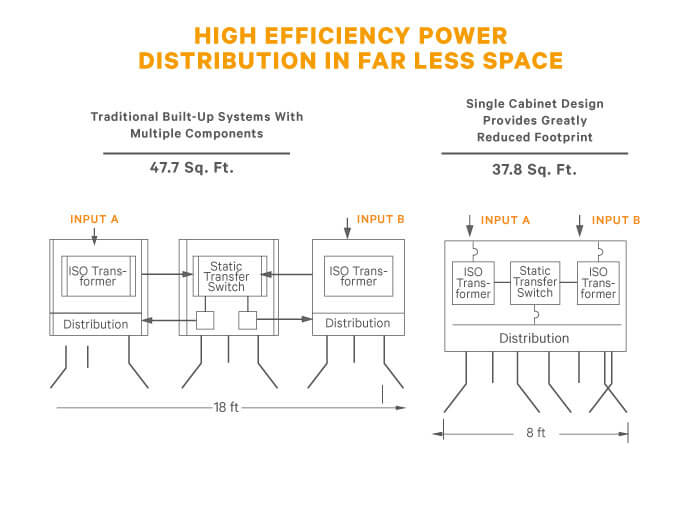

The Liebert STS2-PDU from Vertiv is making it easier to protect your critical equipment by giving your single cord loads the reliability of dual cord power or by providing added redundancy to your dual cord devices. With a single, space-saving unit, the Liebert STS2-PDU static transfer switch/power distribution unit provides power distribution and automatic switching between two different AC power sources. The Liebert STS2-PDU is available in 250A, 400A, 600A and 800A systems, in both 60Hz and 50Hz. Multiple input voltages are available. Designed for use in dual-bus power applications, this solution combines fast switching between AC power sources, power isolation, distribution, monitoring and grounding into a single package.
|
Liebert STS2-PDU 250 Amp
|
|||||
|---|---|---|---|---|---|
| 250 amps | 208, 380, 400, 415, 480, 600 VAC | 77 in | 73 in | 32 in | 3393 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert STS2-PDU 400 Amp
|
|||||
| 400 amps | 208, 380, 400, 415, 480, 600 VAC | 77 in | 73 in | 49 in | 4608 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert STS2-PDU 600 Amp
|
|||||
| 600 amps | 208, 380, 400, 415, 480, 600 VAC | 77 in | 73 in | 49 in | 5692 lbs |
| Afficher plus d'informations sur le produit | |||||
|
Liebert STS2-PDU 800 Amp
|
|||||
| 800 amps | 480 and 600 VAC | 77 in | 97 in | 49 in | 8618 lbs |
| Afficher plus d'informations sur le produit |
Avantages
Caractéristiques
* Pour accéder aux téléchargements propres à des modèles particuliers, rendez-vous sur la page du produit en question en sélectionnant le nom de modèle dans le tableau de spécifications ci-dessus.
