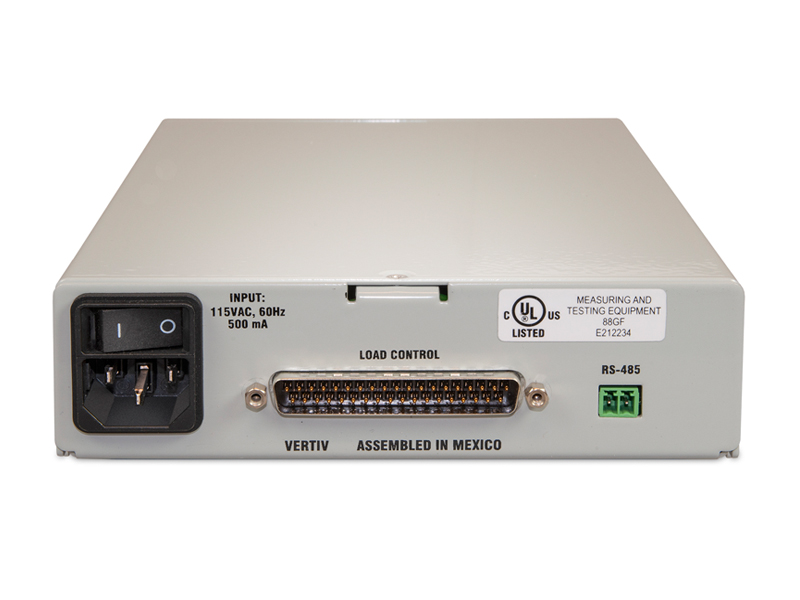

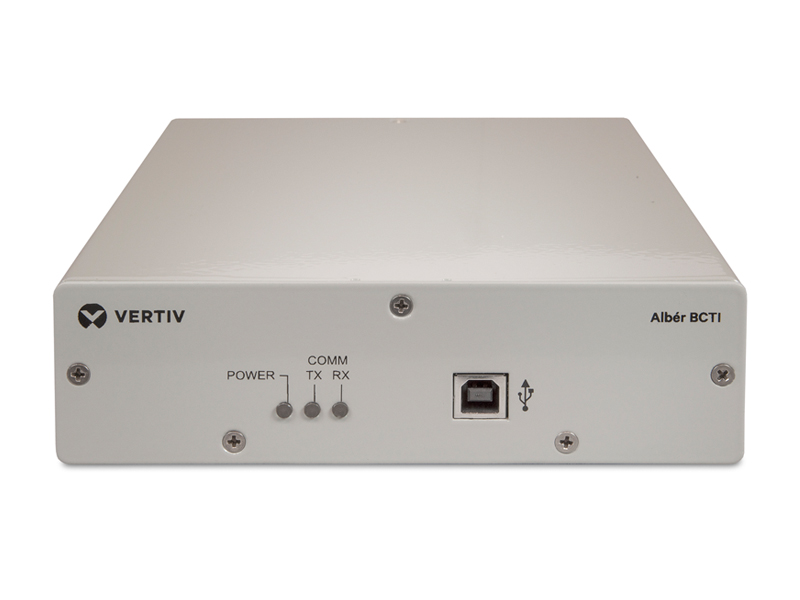

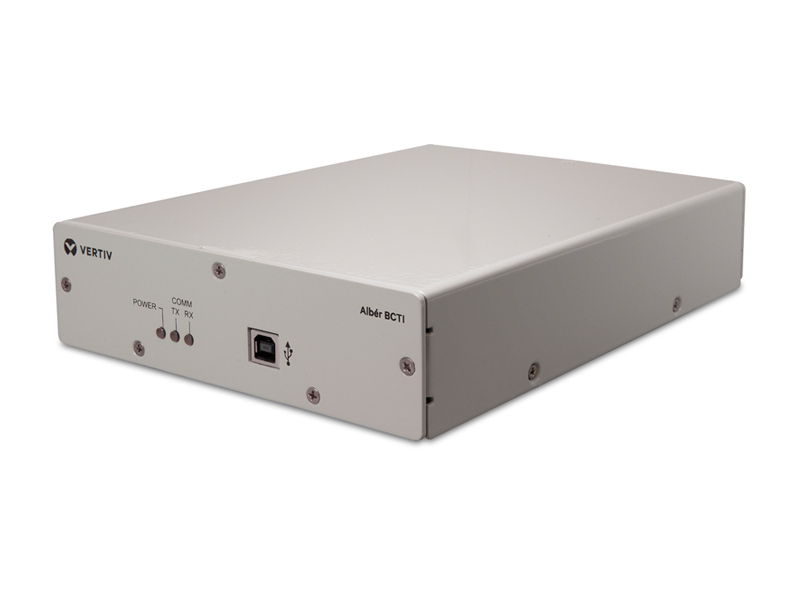

Vertiv™ Albér™ Battery Capacity Testing Interface (BCTI)
Receive battery status and parameters every 4 seconds with the Vertiv Albér BCTI (Battery Capacity Testing Interface). Working alongside the Albér™ CLU & Albér™ UXIME, the Albér BCTI provides the complete solution for real-time modern battery testing, while eliminating the need for business outsourcing, therefore, reducing expenses and saving time. Access various battery parameters such as battery capacity data, total voltage, cell voltage, and many more.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Chemical/Petrochemical (excl. Oil & Gas)
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Data Center/Colocation/Hosting
Vertiv™ Albér™ Battery Capacity Testing Interface (BCTI)
Receive battery status and parameters every 4 seconds with the Vertiv Albér BCTI (Battery Capacity Testing Interface). Working alongside the Albér™ CLU & Albér™ UXIME, the Albér BCTI provides the complete solution for real-time modern battery testing, while eliminating the need for business outsourcing, therefore, reducing expenses and saving time. Access various battery parameters such as battery capacity data, total voltage, cell voltage, and many more.
- Chemical/Petrochemical (excl. Oil & Gas)
- Nuclear Power
- Oil and Gas
- Power Generation
- Power/Gas Transmission and Distribution
- Data Center/Colocation/Hosting
Benefits
Features
Specifications
- Technical Specifications
- Product Line
- Albér™ BCTI

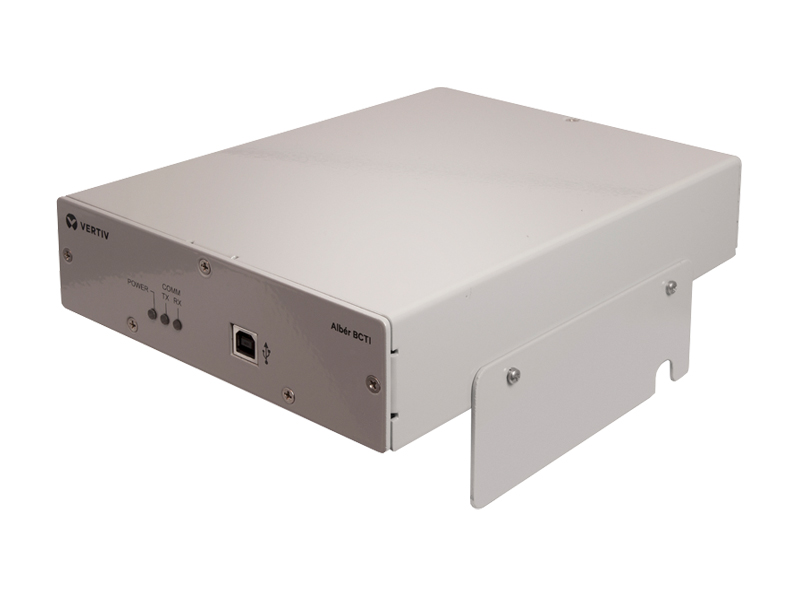

- Mounting
- Wall or 19" Rack Mount
- User Interface
- Albér™ UXIME Configurator Software
- Power Input
- 12V DC, 18 W Max
- Ports
- RS-485, 37-pin parallel cable, USB
- Operating Environment
- 0° - 50°C (32° - 122°F)
- Web User Interface
- Albér UXIME Configurator Software
- Weight
- 1.5 lbs
- Weight
- 0.68 kgs
- Height
- 1.73 in
- Height
- 43.9 mm
- Width
- 6.21 in
- Width
- 157.7 mm
- Depth
- 8 in
- Depth
- 203.2 mm
