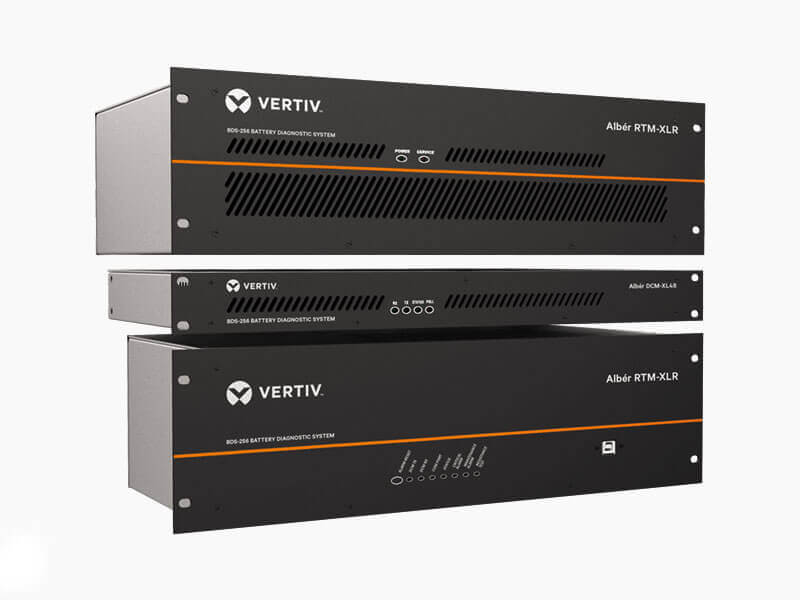

Albér BDS-256XL Battery Monitoring System
The BDS–256XL is a stand–alone battery monitor for UPS applications. It monitors 2V-16V batteries, however is optimized to monitor 2V VLA cells. What sets Vertiv monitors apart from others is their ability to provide early warning of battery problems. The monitors check the state of health of each cell by performing a proactive resistance test, a reliable predictor of battery performance.
- Data Center/Colocation/Hosting
- Government
- Healthcare
Benefits
Features
Specifications
BDS battery monitoring systems continuously monitors and diagnoses all critical battery parameters for many types of battery systems.It identifies potential problems by continuously monitoring parameters such as cell voltage, overall string voltage, current and temperature. Tracking and reporting allow proactive data center monitoring for replacing a bad battery before it affects others in the string.
- Technical Specifications
- Product Line
- Albér BDS
- Mounting
- 19" rack mount, Optional brackets available
- User Interface
- Battery Monitor Data Manager Software, BXE Option
- Power Input
- Less than 5 amps at 115 VAC ±10% 60Hz (for a confi
- Ports
- Local port, USB connector,RS-232,D8-9 connector
- Operating Environment
- Indoor, 5°C to 40°C/41°F to 104°F
- Web User Interface
- N/A
- SNMP
- Yes
- BACnet
- N/A
- Modbus
- Yes
- Notifications
- Yes
- Environmental Sensors
- Optional temperature sensors
- Output Relay
- Yes, dry contacts
- Inputs
- Remote alarm reset User–supplied 12V-32V signal
- Networking
- Yes
- YDN23
- No
- Weight
- 16 lbs
- Height
- 5.25 in.
- Width
- 19 in.
- Depth
- 8.15 in.
