Product Model

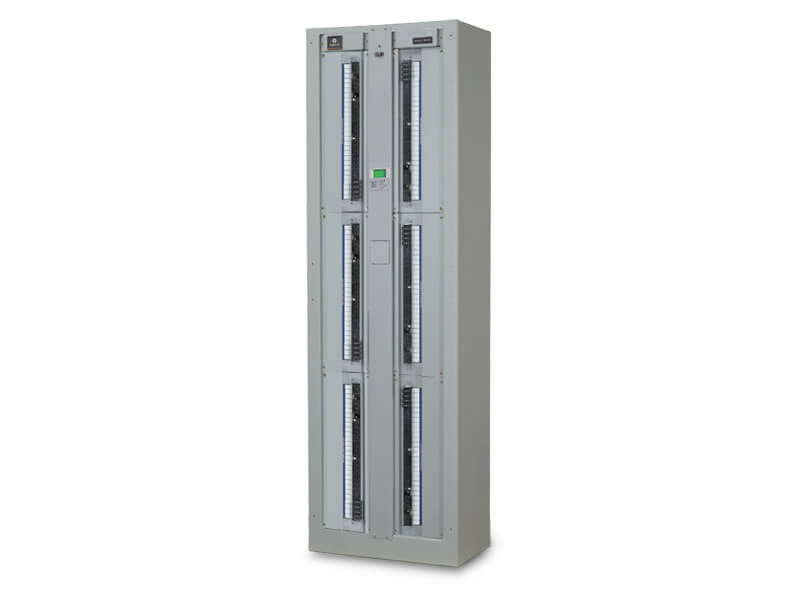

NetSure 801DB Distribution Bay
The NetSure 801DB distribution bay features high capacity, modularity, and simplified installation.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
Product Model
NetSure 801DB Distribution Bay
The NetSure 801DB distribution bay features high capacity, modularity, and simplified installation.
Best Suited For:
- Telecom
- Data Center/Colocation/Hosting
Benefits
Modular design minimizes CapEx by allowing incremental system growth
Simplify installation and maintenance with easy access to cables and terminations
Increase real-time visibility into power usage and take control of your network
Features
High capacity up to 4,800 amp (eight panel) or 3600 amp (six panel)
Each panel is configured for up to 800 amp feed, delivering a continuous rating of 640 amps
Digital metering for current and voltage monitoring for bays and individual modules
Optional BDFB Ethernet Card (BEC) interfaces through Web pages, SNMP and Modbus
Interchangeable fuse and circuit breaker distribution modules
Three ground return options include overhead bus bars, internal panels, internal full bay: 1200 A standard; 2400 A optional
Optional deeper bay for easier cable management
NEBS level 3 compliance, meets or exceeds all relevant GR1089, GR63 and UL specifications
Specifications
NetSure 801DB Distribution Bay
- Product Overview
- Power Capacity
- 240 kW (8 load) or 180 kW (6 load)
- Current Capacity
- 4800 A (8 load) or 3600 A (6 load)
- System Type
- Distribution Bay
- Input
- Input Voltage, Nominal
- 48 VDC
- Access
- Top and back
- Output
- Output Voltage, Nominal
- 48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL, GMT Fuses or Bullet Circuit Breakers
- Environmetal & Standard Compliance
- Control and Monitoring
- Digital metering with remote control over Modbus or SNMP
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Safety Compliance
- NEBS level 3 compliance, meets or exceeds all relevant GR1089, GR63, UL, cUL specifications
