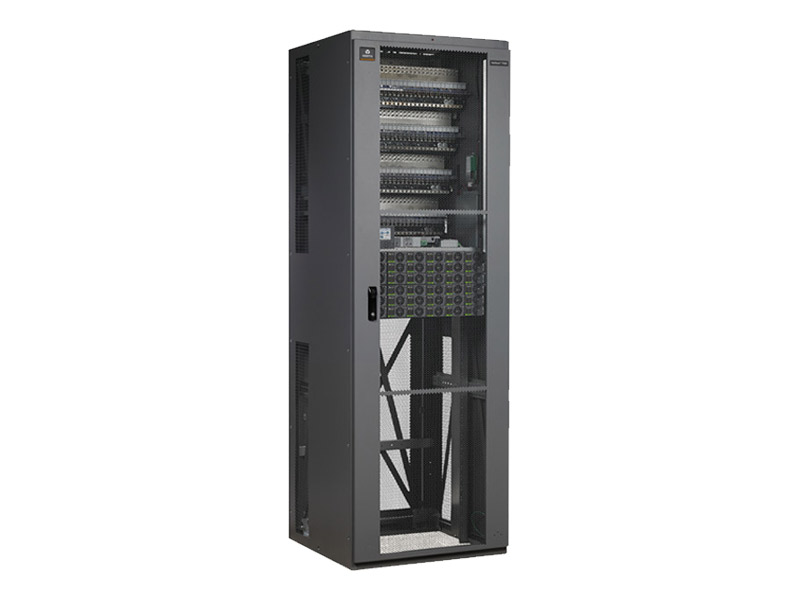

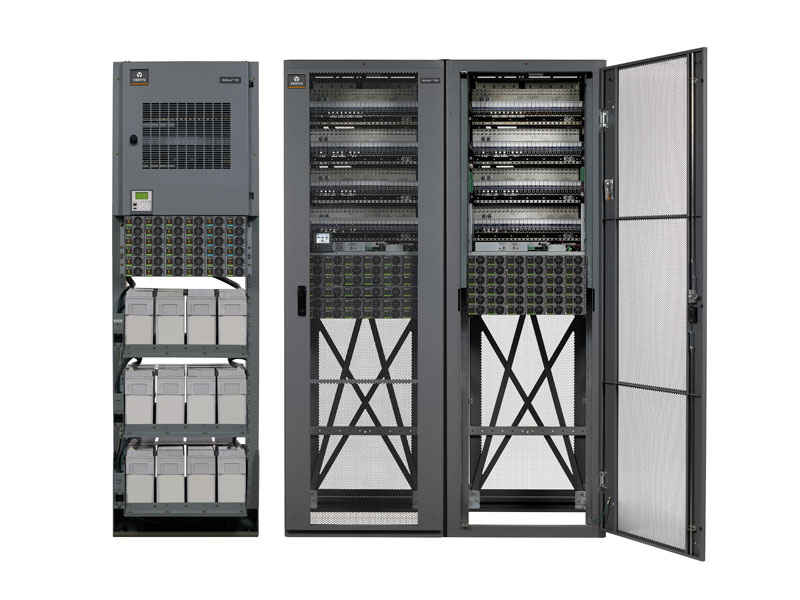

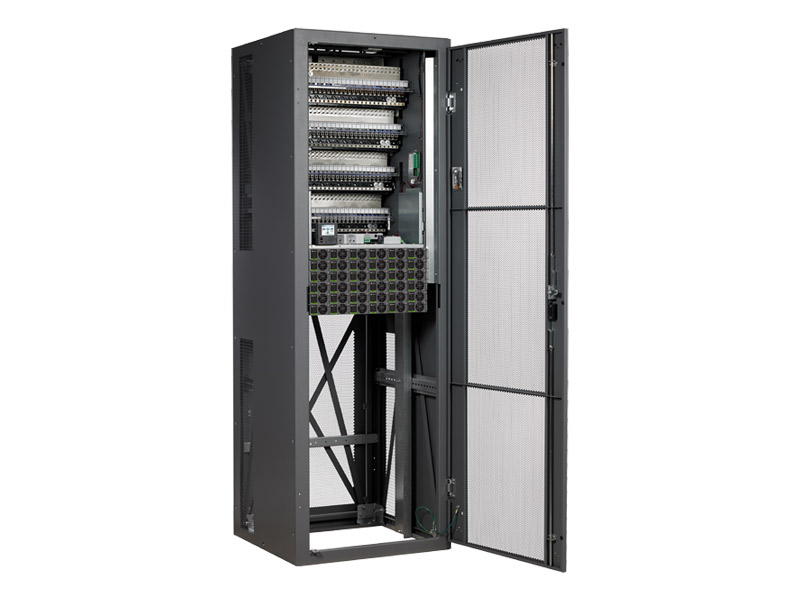

NetSure 7100 Series
The modular NetSure™ 7100 Series power system with 3500 watt or 2000 watt rectifiers and DC to DC converters provides up to 12,000 amps of current for -48 volt systems with up to 520 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a modular distribution cabinet.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Data Center/Colocation/Hosting
- Telecom
NetSure 7100 Series
The modular NetSure™ 7100 Series power system with 3500 watt or 2000 watt rectifiers and DC to DC converters provides up to 12,000 amps of current for -48 volt systems with up to 520 amps at +24 volts or -58 volts. The basic components of the power system include the NetSure Control Unit (NCU), module mounting shelf assemblies which house the rectifiers and converters, and a modular distribution cabinet.
- Data Center/Colocation/Hosting
- Telecom
Benefits
Features
Specifications
- Product Overview
- Power Capacity
- 600 kW (6 bays)
- Current Capacity
- 12,000 A (6 bays)
- System Type
- Cabinet or Relay Rack
- Input
- Input Voltage, Nominal
- 208 VAC to 277/480 VAC
- Input Voltage, Operational
- 176 VAC to 305/528 VAC
- Input Connections
- Terminal Blocks or Line Cords
- Equipment Dimensions (H x W x D)
- D Cabinet:12.2" (7RU) to 33.25" (19RU) x 23" x 20.1", R Shelves:1.7" (1RU) or 5.2" (3RU) x 23" x 20.1"
- Access
- Front for installation, operation and maintenance, Rear for multi-bay, rectifier shelf or battery tray expansion
- Output
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 2000 amps per bay at -48 VDC plus redundancy, maximum of six bays; Up to 520 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.5%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- Up to (104) Bullet CBs, 1 to 300 A, Up to (24) GJ/218 CBs, 100 to 800 A, Up to (16) TPH Fuses, 70 to 600 A, Up to (16) TBL-B Fuses, 70 to 250 A
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Up to (24) Bullet CBs, 1 to 300 A, Up to (4) GJ/218 CBs, 100 to 800 A, Up to (4) TPH Fuses, 70 to 600 A /up to 200A CB Disconnect mounted on each batt
- Options
- Low Voltage Load Disconnect, Low Voltage Batttery Disconnect, Battery Shunt, Battery Trays - Pre-cabled, Bulk Output Panel, Up to (68) Temp Sensors
- Weight
- 90.9 to 295.5 kg
- Height
- 2134 mm
- Width
- 584.2 to 711.2 mm
- Depth
- 510.5 to 711.2 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Dual Ethernet, Embedded web pages, SNMP, Modbus, Battery Management, Programmable Relay Outputs and Binary Inputs, Energy Management
- Operating Temperature
- -40 °C to +40 °C (-40 °F to +104 °F)
- Safety Compliance
- UL 1801 Listed (“c UL”), NEBS Level 3
- EMC Compliance
- FCC Class B
- UM1R483500E Rectifier User Manual
- UM1R482000E3 eSure Rectifier User Manual
- IM582127000 NetSure 7100 Installation Manual
- UM02440103 SM-IO2 User Manual
- UM10010507 SM-DU+ User Manual
- IM559252 NetSure Controller Ethernet Kit
- UM1C48582000P3 eSure Power Extend Converter User Manual
- IM588820200SK001 NetSure Battery Tray Kit Installation Manual
- NetSure™ Control Unit (NCU) Controller 2nd Ethernet Port Retrofit Kit
- NetSure 7100 Data Sheet with eSure Power Extend Converters

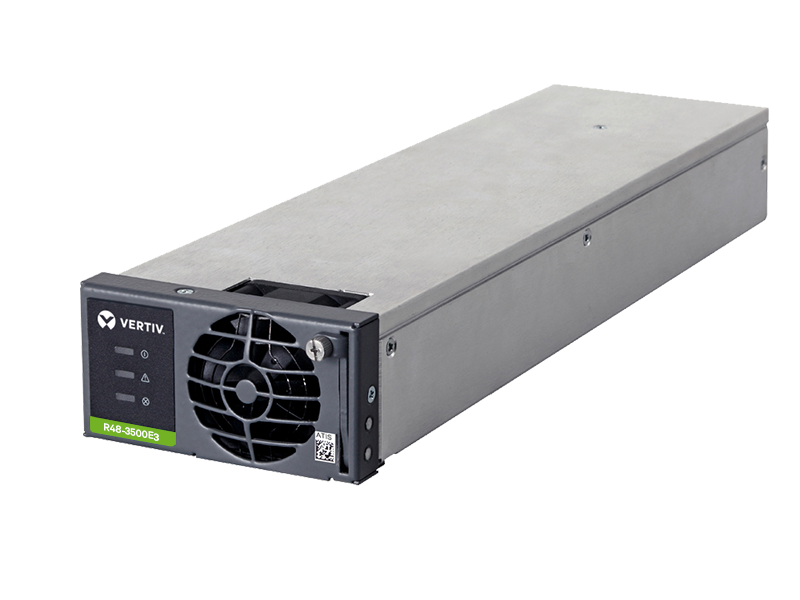

- R48-3500e3 eSure Rectifier Data Sheet
- R48-3500e Rectifier Data Sheet
- C48/58-2000P3 eSure™ Power Extend Converter Data Sheet

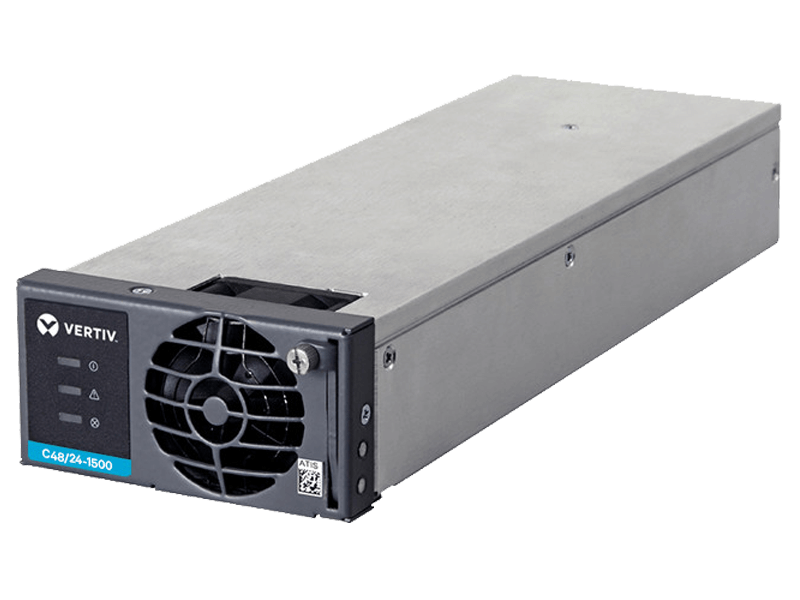

- C48-24-1500 eSure Converter Data Sheet
- Distributed Antenna System Solutions (DAS)

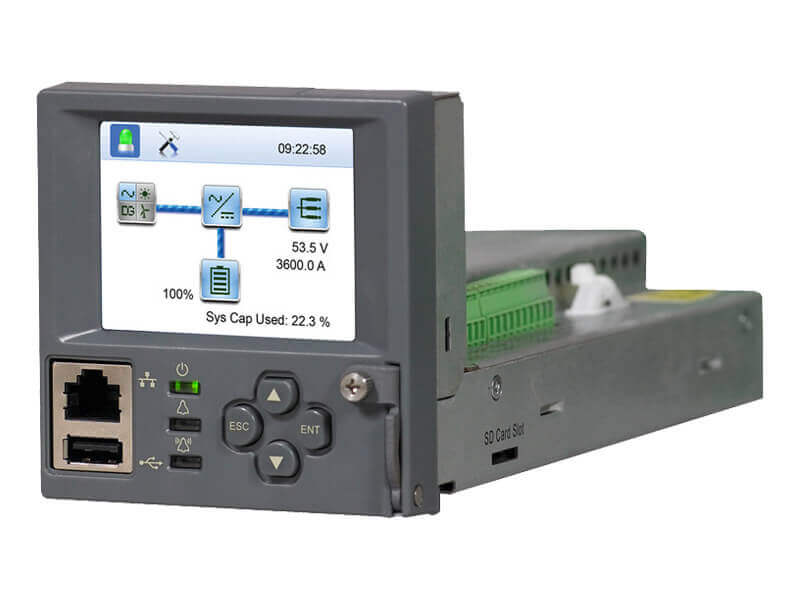

- NCU Controller Data Sheet
- Vertiv™ NetSure™ DC Power Services Maintenance Data Sheet
- Vertiv™ NetSure™ DC Power Services Test & Turn-Up Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
Related Products And Services
Designed for rapid deployment in telecom access network applications requiring a reliable and high density power supply up to 500 A at -48 VDC. The high operating temperature (350A system rating at +65°C) in conjunction with high operational efficiency has a positive impact on climate system dimensioning in outdoor enclosure applications.
