PSI5-3000SRT120LI
At 3000VA/2700W capacity, the Liebert® PSI5 Lithium-Ion short depth UPS provides the greatest power capacity with the shortest depth chassis in the market. The chassis is 16.9 inches total depth and only 15.7 rackmount depth which makes it ideal for smaller installations with wall mount and 2-Post racks. This compact UPS is also suited for 4-Post racks which frees up space behind the UPS to be used for other networking gear in the same U space. It is ideal when you have non-standardized install locations.
- Education
- Banking, Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Benefits
Features
Specifications
The Vertiv™ Liebert® PSI5 Lithium-Ion UPS provides power protection for critical equipment in edge and distributed IT applications. Lithium-ion batteries provide more than double the useful life of traditional VLRA batteries, resulting in up to 60% TCO savings or more. The UPS uses AVR technology to further extend battery life and offers 2-4 times the runtime of comparable UPS systems at full load. It also comes with a rotating LCD display to allow both rack and tower configurations.
- Product Overview
- Power Rating
- 3000VA / 2700W
- Input Voltage
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage
- 120VAC Default; 100/110/115/125VAC User Selectable
- Efficiency
- Up to 97.3% (Normal Mode)
- Wiring

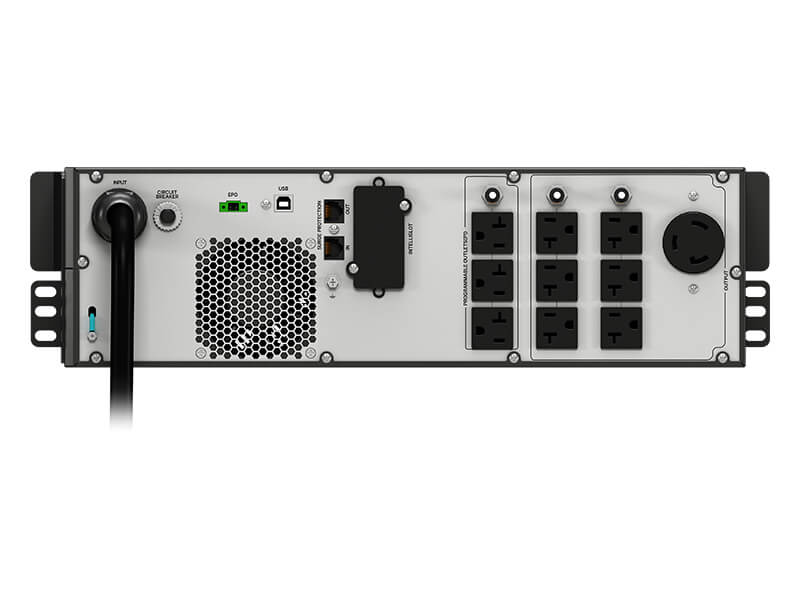

- Input: L5-30P; Output: 9 x 5-20R, 1 x L5-30R
- Interfaces/Ports
- Interface Options
- Optional communications card (Liebert® IntelliSlot UNITY), USB, EPO connector
- Protocols
- SNMP and web management enabled with optional Liebert® IntelliSlot UNITY communications card
- Control Panel

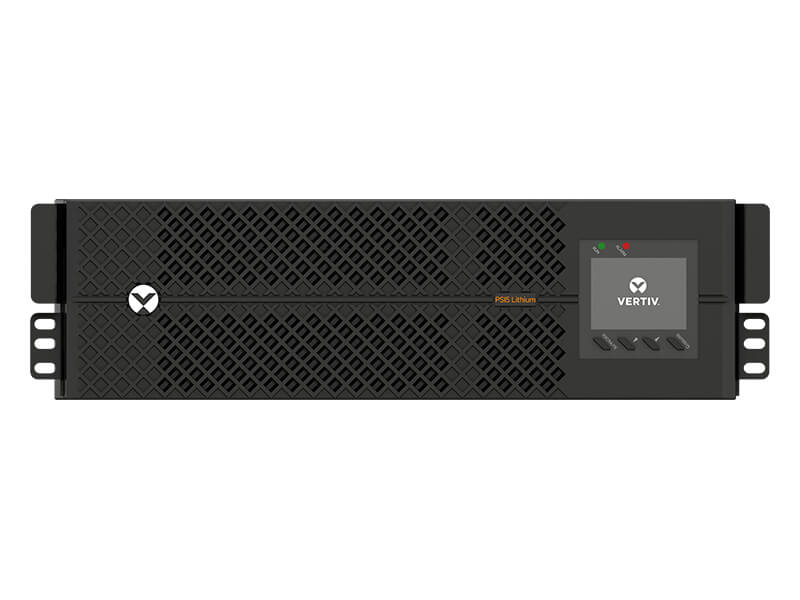

- Rotatable LCD display provides flexible installation options (rack/tower)
- Service Access
- Front Access (hot-swappable battery kits)
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Miscellaneous
- General
- Pure sinewave output on battery
- Listings
- UN38.3, UL 1778, c-UL-us Listed, NOM, FCC Part 15, Class B
- Topology
- Line-interactive (automatic voltage regulation)
- Vertiv™ Liebert® PSI5 UPS 800-5000VA User Guide SL-23314
- Liebert® PSI5 Lithium-ion UPS Quick Installation Guide
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806)
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806) - ES-LA
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806) - FR-CA
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA Short Depth UPS Quick Installation Guide (SL-70815)
- Runtime Tool: Vertiv™ Liebert® PSI5 Lithium-Ion UPS
- Liebert® PSI5 Lithium-Ion UPS Brochure (SL-70585)
- Liebert® PSI5 Lithium-Ion UPS Data Sheet (SL-70581)
- Data Center Infrastructure Solutions-Channel Products Catalog
- Vertiv™ E-Rate Eligible Brochure
- Vertiv™ Equipment Protection Plan
- Liebert® PSI5 Lithium-Ion Short Depth UPS Data Sheet (SL-70889)
- Vertiv PSI5 Lithium-Ion Short Depth Application Brief SL-70899
- Vertiv™ Lithium-Ion UPS Catalog SL-71049
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
