NetSure 802 DC Power System
The expanded NetSure™ 802 Series introduces separate, stand-alone power and distribution bays complementing the system’s compact combination bays and integrating easily with existing AC infrastructure.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
NetSure 802 DC Power System
The expanded NetSure™ 802 Series introduces separate, stand-alone power and distribution bays complementing the system’s compact combination bays and integrating easily with existing AC infrastructure.
- Telecom

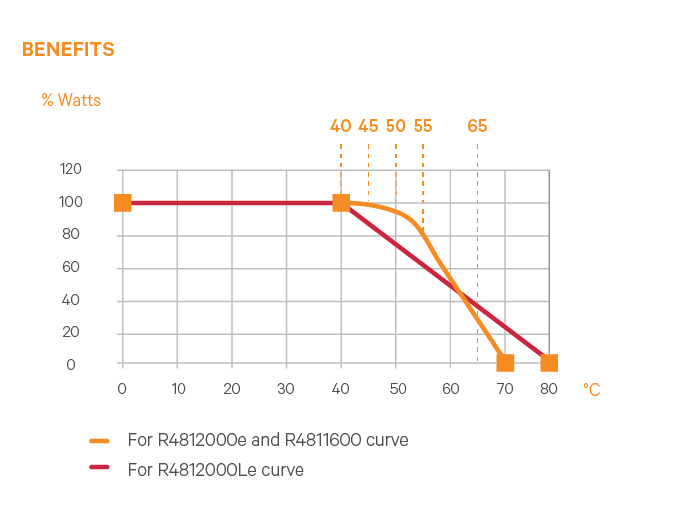

Benefits
Features
Specifications
- Product Overview
- Power Capacity
- 1 GW
- Current Capacity
- 20,000 A
- System Type
- Power Bay
- Input
- Input Voltage, Nominal
- 208 VAC to 480 VAC; three phase
- Input Voltage, Operational
- 408-528 VAC to 176-264 VAC
- Equipment Dimensions (H x W x D)
- Combo Bay List 1 and List 11 93.5" x 24" x 30", 830 lbs., Combo Bay List 2 and List 12 84" x 24" x 30", 830 lbs., AC Distribution Bay (PDSC): 84" x 1
- Access
- Front and rear
- Output
- Output Voltage, Nominal
- 48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity
- 12,000 W rectifier
- Peak Efficiency
- 96.1% (480 VAC), 95.7% (208 VAC)
- Load Circuit Breakers / Fuses
- TPS/TLS, TPL Fuses or GJ/218-Style breakers
- Environmetal & Standard Compliance
- Control and Monitoring
- MAC controller with optional monitor LMS1000
- Operating Temperature
- 0 °C to +40 °C (+32 °F to +104 °F)
- Safety Compliance
- UL Listed (UL1801), CSA 22.2 (No. 225), c UL, NEBS Level 3
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
