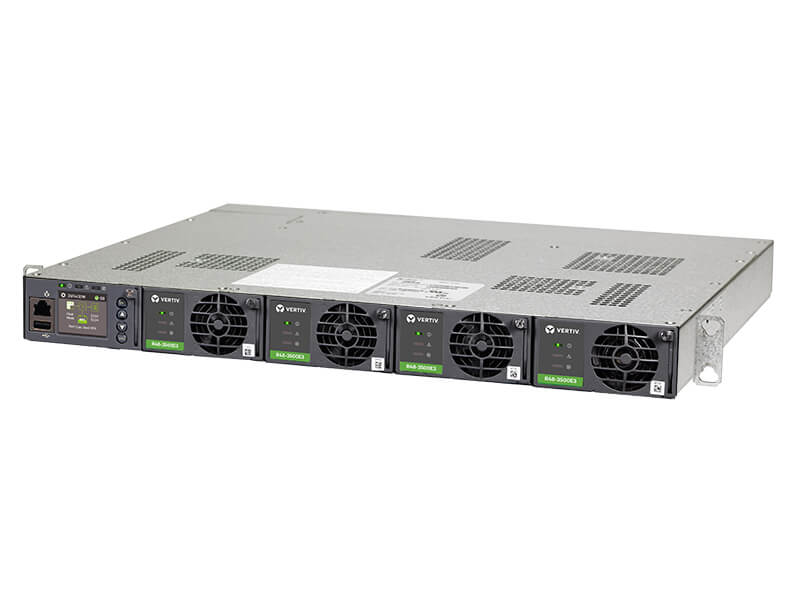

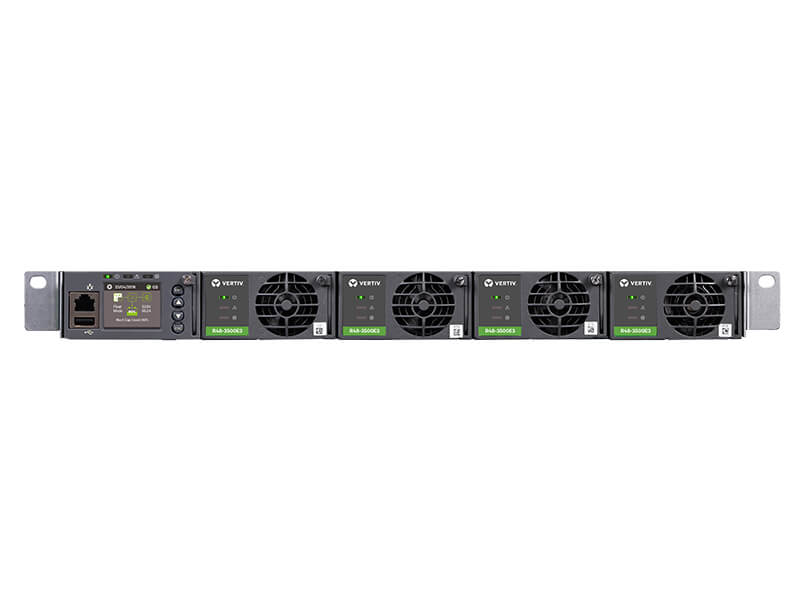

NetSure 5100 58870530036
The NetSure 5100 bulk DC power system provides -48VDC at up to 160A and is ideal for legacy power retrofit applications or when overcurrent protection is unnecessary. This cost-effective solution does not include distribution or the provision for battery strings.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
NetSure 5100 58870530036
The NetSure 5100 bulk DC power system provides -48VDC at up to 160A and is ideal for legacy power retrofit applications or when overcurrent protection is unnecessary. This cost-effective solution does not include distribution or the provision for battery strings.
- Telecom
Benefits
Features
Specifications
The NetSure 5000 Series, a compact -48 volt 160 A DC power solution, features an advanced control unit, up to (4) positions for 2000 W high-efficiency eSure rectifiers. The power system supports 19"W and 23"W rack mounting and is designed to work with a wide range of applications.
- Product Overview
- Power Capacity
- 8kW
- Current Capacity
- Up to 160A
- System Type
- Bulk subrack
- Input
- Input Voltage, Nominal
- 120VAC, 208VAC, 240VAC
- Input Voltage, Operational
- 85 VAC to 300 VAC
- Input Connections
- Molex cords
- Equipment Dimensions (H x W x D)
- 1RU H x 19"W X 15"D
- Access
- Front for Control, Rear for AC IN and DC Out
- Output
- Output Voltage, Nominal
- -48VDC
- Output Voltage, Operational
- -42 VDC to 58 VDC
- Output Capacity
- 160A
- Peak Efficiency
- 96.2%
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU Controller
- Operating Temperature
- -40C to 65C
- Safety Compliance
- UL 60950 Recognized
- EMC Compliance
- FCC Class B
