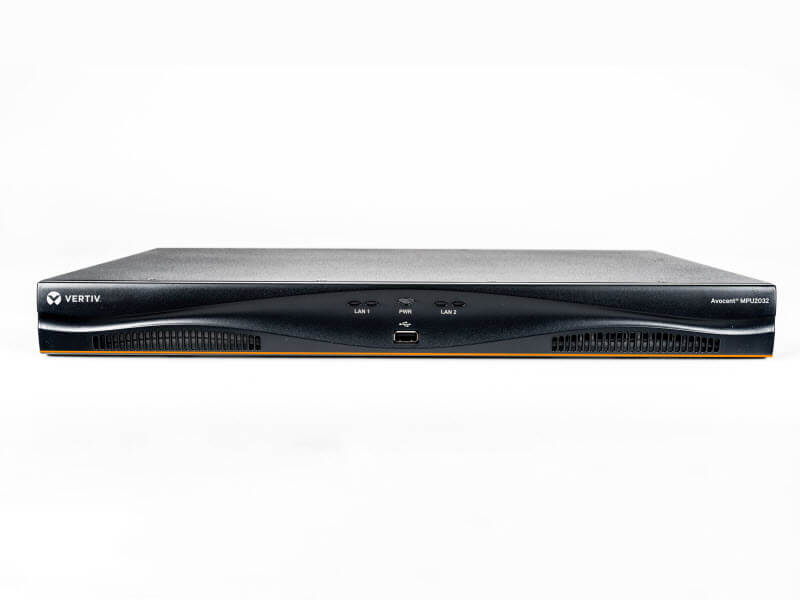

Avocent MPU2032DAC Digital KVM Switch
Avocent MPU digital KVM switches provide remote management to access and control servers in data centers and branch offices. The switch enhances in-band management by providing secure and remote out-of-band connections directly to the KVM, USB and serial ports. This approach creates a faster method to diagnose, reconfigure or restore equipment.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
Avocent MPU2032DAC Digital KVM Switch
Avocent MPU digital KVM switches provide remote management to access and control servers in data centers and branch offices. The switch enhances in-band management by providing secure and remote out-of-band connections directly to the KVM, USB and serial ports. This approach creates a faster method to diagnose, reconfigure or restore equipment.
Warranty: 2 Year Full Coverage Factory Warranty - Optional Extended Warranty AvailableBenefits
Features
Specifications
The Avocent MergePoint Unity™ switch provides IT administrators a complete remote management solution to access and control servers, networking equipment and other devices found in data centers and branch offices.
- Product Overview
- Type
- KVM
- Input Ports
- 1 x VGA, 4 x USB Type A
- Output Ports
- 32 serial, 2 digital
- Video Connection
- VGA, DVI-I, Display Port and HDMI
- Video Resolution
- Maximum local video resolution 1920x1080
- Graphic Mode
- Internal Modem
- No
- Service Processor support
- No
- Extension Distance
- 50m
- Cellular Support
- No
- Interfaces/Ports
- Network Interface(s)
- (2) 10/100/1000 Ethernet
- USB ports
- 4
- USB Hub Support
- Yes
- Miscellaneous
- Other supported accessories
- Serial
- Authentication Supported
- Local, LDAP
- Agency Approvals
- UL, FCC, cUL, ICES003, CE, VCCI, KCC, C-Tick, GOST
- Operational Conditions
- Operating Temperature
- 32° to 22°F (0° to 50°C)
- Humidity
- 5 - 95% relative humidity 38.7°C max wet bulb temp
- Storage Temperature
- -4° to 158°F (-20° to 70°C)
- Physical Characteristics
- Weight
- 8.6lbs
- Weight
- 3.9 kgs
- Height
- 1.72 in
- Height
- 43.69 mm
- Width
- 17 in
- Width
- 431.8 mm
- Depth
- 13.38 in
- Depth
- 339.85 mm
- Power Description
- Power Supply(s)
- Single or dual power, internal, 100-240V
- Input Power (Maximum)
- 40W
